Horizontal Sandwich Busway

The Fenghua Electric Horizontal Sandwich Busway is a dense busbar power distribution system designed for horizontal electrical transmission in low- and medium-voltage networks. It uses a “sandwich” layered structure with high-purity copper conductors and a fully sealed aluminum-magnesium alloy casing. The busway efficiently transmits large currents, reduces energy loss, ensures stable voltage, and provides excellent heat dissipation and electromagnetic interference resistance.

What is Horizontal Sandwich Busway used for?

1. Horizontal High-Current Main Power Distribution

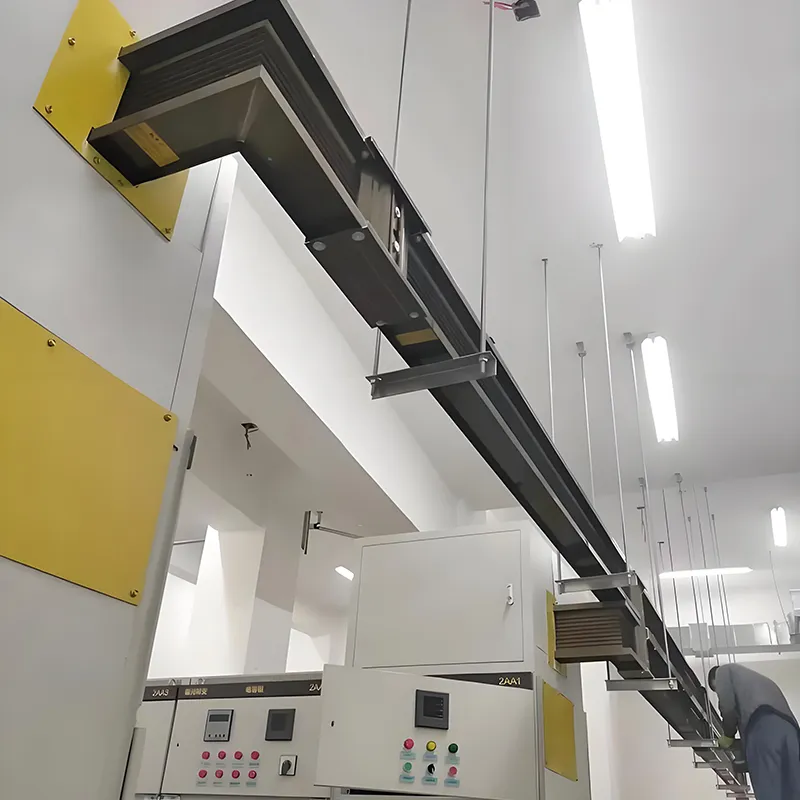

Serving as an alternative to traditional cables and cable trays, it provides horizontal main power distribution in facilities such as factories, data centers, commercial buildings, airports, and transportation hubs, connecting transformers, switchgear, and distribution cabinets.

It is ideally suited for power distribution requirements involving high currents, long distances, and low energy loss; notably, its voltage drop is significantly lower than that of cables with equivalent current-carrying capacity.

2. Flexible Power Tap-off and Capacity Expansion

Compatible with plug-in boxes, the system allows equipment to draw power from the busway at any time—without the need to cut power or perform rewiring. This makes it ideal for dynamic capacity expansion and load adjustments in production lines, equipment rooms, and multi-tenant buildings.

3. Scenarios Where It Offers Advantages Over Traditional Cables

Locations with limited space that require compact wiring solutions.

Industrial facilities and data centers with stringent requirements regarding fire safety, dust protection, and electromagnetic interference shielding.

Projects requiring rapid installation and ease of future modification or retrofitting.

Differences Compared to Standard Busbars / Cables

Product Core Features

(I) Innovative "Sandwich" Structure: Comprehensive Performance Upgrade

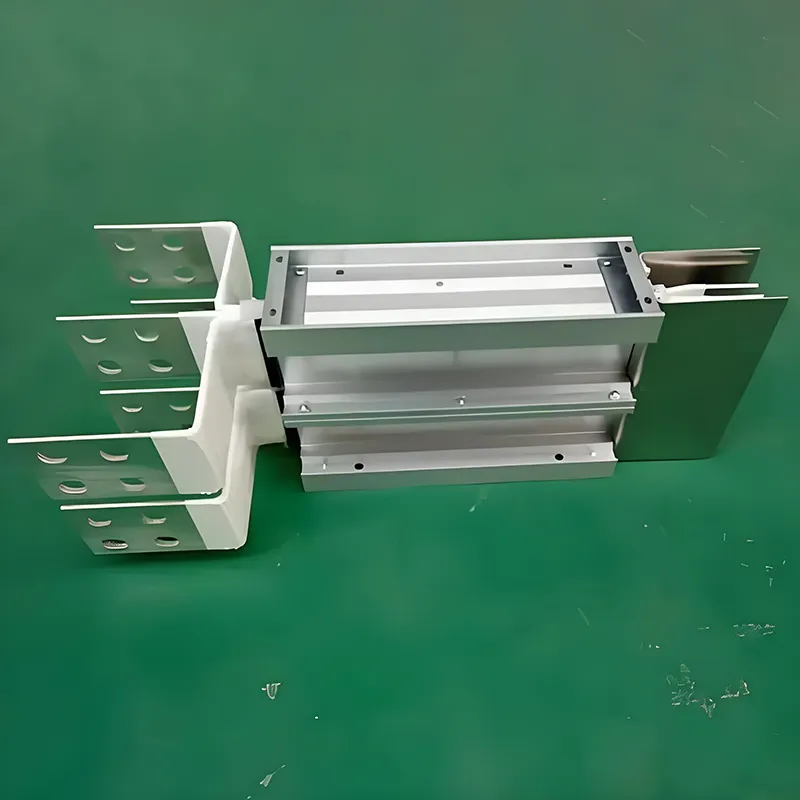

Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd.’s Horizontal Sandwich Busway incorporates core technologies from compact busbar systems, utilizing a classic "sandwich" laminated layout. The conductive copper busbars are tightly sandwiched between upper and lower layers of high-performance insulating material, creating a compact and robust structure. This design not only significantly enhances the product's mechanical strength and effectively boosts its impact resistance, but also notably optimizes heat dissipation efficiency. In high-load power transmission scenarios, it can rapidly dissipate operational heat, thereby preventing performance degradation and mitigating the risk of failure caused by overheating. Furthermore, the tight laminated structure effectively minimizes electromagnetic interference, ensuring the stability and purity of power transmission to provide reliable electrical support for the operation of precision equipment.

(II) Fully Sealed Aluminum-Magnesium Alloy Casing: Adaptable to Complex Environments

The product features a fully sealed, corrugated aluminum-magnesium alloy casing with a distinctive sawtooth profile. Manufactured using a specialized process, the casing boasts exceptional resistance to water, dust, and corrosion. Verified by authoritative testing, the product successfully withstands a 1,800-hour salt spray test. Consequently, it ensures long-term, stable operation even in humid, saline marine climates or dust-laden industrial facilities - significantly extending the product's service life and reducing long-term maintenance costs. The sawtooth corrugated design further increases the casing's surface area for heat dissipation; combined with the internal "sandwich" structure, this creates a dual-layer thermal management system that allows the product to perform reliably even in high-temperature environments.

(III) Optimized Horizontal Layout Design: Convenient and Flexible Installation

Specifically tailored for horizontal installation scenarios, Qingdao Fenghua has implemented targeted optimizations for this busway system. The product's structural strength and support spacing fully comply with industry standards, allowing for the production of horizontal sections up to 13 meters in length. This capability reduces the number of required installation joints, thereby enhancing overall transmission stability. Moreover, the flexible installation design accommodates the diverse power distribution requirements of various buildings and industrial facilities - whether for floor-level power distribution in large-scale commercial complexes or power transmission within modern factory workshops - enabling effortless installation and effectively shortening construction cycles.

Authoritative Certification and Quality Assurance(放证书图片）

Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd.’s Horizontal Sandwich Busway has obtained authoritative certifications. All materials utilized in its construction are low-smoke, halogen-free compounds that fully meet relevant regulatory requirements, ensuring both environmental sustainability and safety while simultaneously guaranteeing superior performance. The company has established a comprehensive quality control system; from the procurement of raw materials to the final shipment of finished products, every stage undergoes rigorous testing to ensure that all technical parameters meet established standards, thereby providing customers with a reliable guarantee of quality.

Applicable Scenarios: Covering Diverse Power Transmission Needs

Thanks to its exceptional performance, this busbar trunking system is widely applicable across a variety of settings:

Commercial Buildings: Large shopping malls, office complexes, hotels, and similar venues - providing stable power to dense arrays of electrical equipment and ensuring the uninterrupted operation of commercial activities.

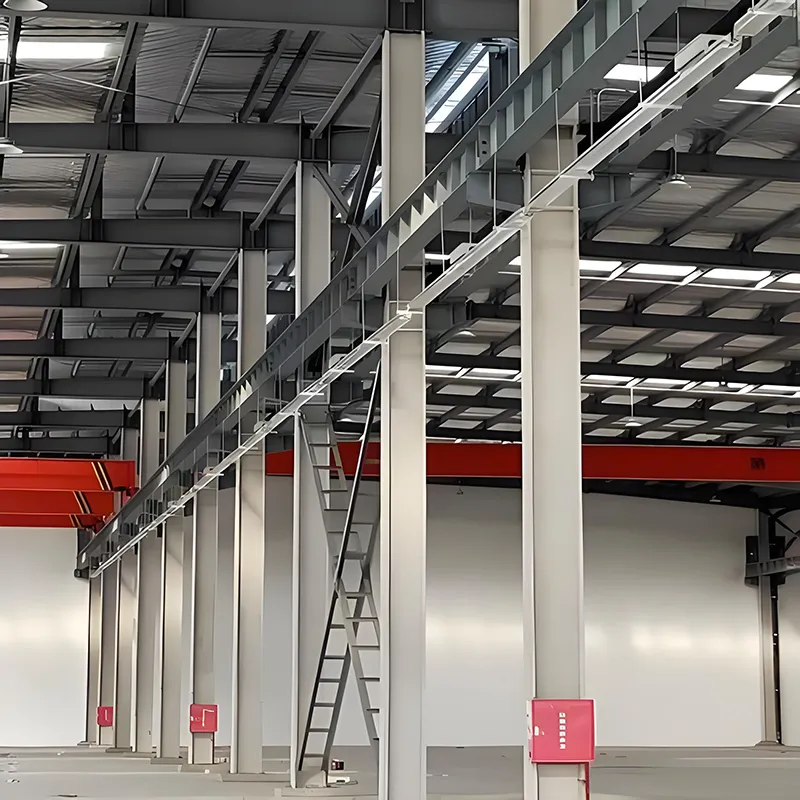

Industrial Production: Various factory workshops - particularly in high-load or dusty production environments - capable of adapting to complex operating conditions and supporting continuous manufacturing operations.

Data Centers: Delivering clean, stable power to precision IT infrastructure, such as servers and storage devices, thereby preventing data loss and equipment damage caused by power fluctuations.

Municipal Projects: Large-scale public facilities such as subway stations and sports stadiums - meeting high-volume power transmission demands and ensuring the smooth operation of public services.

Attentive Service: Technical Support Every Step of the Way

Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd. fully recognizes the importance of high-quality service and provides customers with a comprehensive suite of support services:

Initial Consultation: Our professional technical team offers expert consultation on power transmission scheme design, recommending the most suitable product models and installation layouts based on the specific requirements of each project.

Installation Guidance: We provide on-site technical guidance during the product installation process to ensure strict adherence to installation standards and to guarantee that the product's performance is fully optimized.

After-Sales Maintenance: We have established a robust after-sales response mechanism to promptly resolve any issues customers may encounter during operation, while also conducting periodic follow-ups to safeguard the continued, reliable performance of our products.

FAQ

1.What is a Horizontal Sandwich Busway?

A Horizontal Sandwich Busway is a compact, layered busbar system for horizontal power distribution, providing high current capacity, low energy loss, and reliable performance.

2.What materials are used in Fenghua Electric Busways?

Our busways use high-purity copper conductors and a fully sealed aluminum-magnesium alloy casing, ensuring durability, heat dissipation, and corrosion resistance.

3.Where can I install a Horizontal Sandwich Busway?

Ideal for industrial plants, commercial buildings, data centers, and high-rise structures, supporting long-distance horizontal power distribution.

4.What are the main benefits of using Fenghua Electric Busways?

They offer stable voltage, low temperature rise, electromagnetic interference resistance, and suitability for marine or humid environments.

5.Can the busway be customized for my project?

Yes, Fenghua Electric supports custom lengths, current ratings, and connection types to meet project-specific requirements.

6.How do I maintain a Horizontal Sandwich Busway?

Regular inspection for cleanliness, tight connections, and corrosion is recommended to ensure optimal performance and safety.

7.Is the busway safe for high-load applications?

Absolutely. The dense copper conductor design and sealed casing ensure safe, reliable power transmission under high-load conditions.

8.How can I purchase Fenghua Electric Busways?

Contact Fenghua Electric sales for bulk orders, project quotes, or technical support for your horizontal power distribution needs.
