Customized Lighting Busway System Manufacturer in China

Fenghua Electric Lighting Busway System – Types, Functions & Applications

Fenghua Electric Lighting Busway System is a low-voltage power distribution solution designed for safe, flexible, and efficient lighting electricity transmission. As a professional busway manufacturer and lighting busway supplier, Fenghua Electric provides customized systems widely used in commercial and industrial lighting projects.

What is a Lighting Busway System?

A lighting busway system is a modular power distribution track that integrates conductors, insulation, and housing into a compact structure. It allows quick installation of lighting fixtures and flexible power access along the busway.

  • Delivers stable power for lighting circuits (≤400V)
  • Supports plug-in lighting fixtures
  • Reduces wiring complexity compared to traditional cables

Key Advantages of Fenghua Electric Lighting Busway

  • High efficiency: Stable current transmission with low energy loss
  • Flexible installation: Modular structure supports quick expansion
  • Custom manufacturing: OEM/ODM supported by factory direct supply
  • Reliable quality: CCC certified, compliant with industry standards
  • Cost optimization: Factory price with long service life
View as

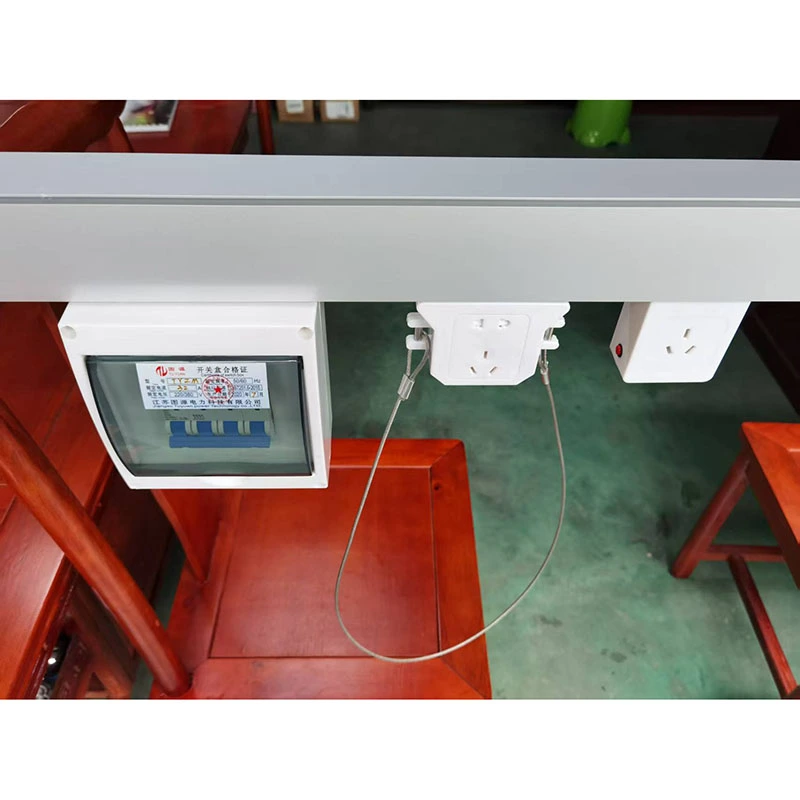

Track-Type Lighting Busway

Track-Type Lighting Busway

Fenghua Electric Track-Type Lighting Busway is a reliable lighting power distribution solution designed for modern buildings. As a professional manufacturer and supplier, we offer lightweight aluminum housing, flexible plug-in design, and fast installation. Ideal for commercial and industrial projects, it ensures safe, efficient, and cost-effective lighting power delivery.
View More >> Send Inquiry >>

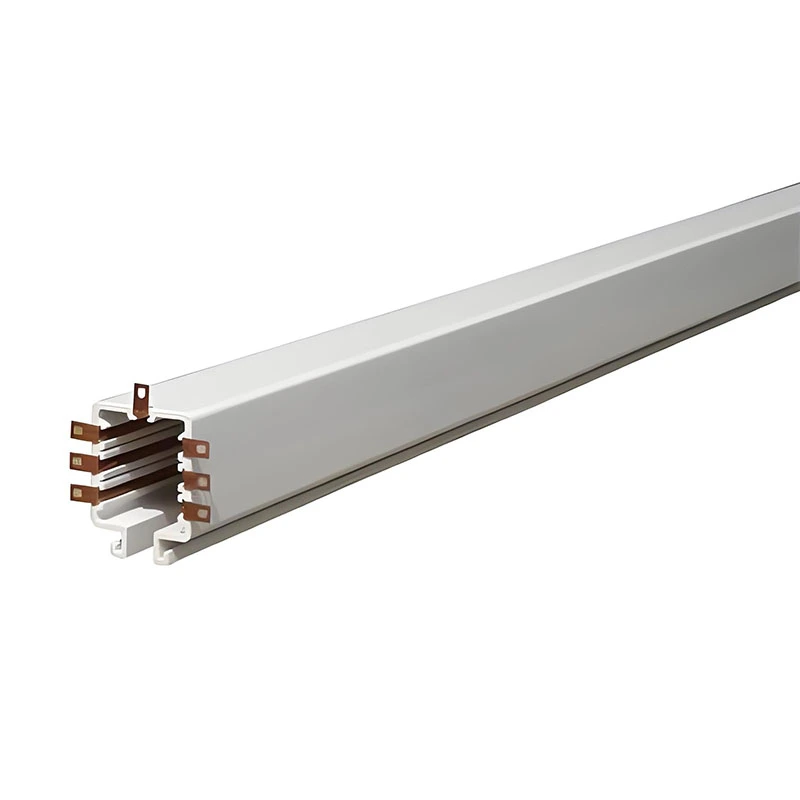

Standard Lighting Busway

Standard Lighting Busway

As a reliable Standard Lighting Busway supplier, we offer high-conductivity copper, flame-retardant insulation, and easy installation.
Main Function & Use
Distributes electrical power to lighting systems
Supports multi-point power tapping for flexible layouts
Ensures stable and low-loss power transmission
Simplifies wiring in modern construction projects
View More >> Send Inquiry >>

Technical Specifications of Lighting Busway System

Parameter Specification
Product Name Lighting Busway System
Brand Fenghua Electric
Rated Voltage ≤400V AC (3 Phase 4 Wire / 3 Phase 5 Wire)
Rated Current 25A – 63A / 100A (customizable)
Frequency 50Hz / 60Hz
Conductor Material High conductivity copper or aluminum
Insulation Material High-strength flame-retardant insulation (Class B/F)
Protection Level IP40 / IP54 / IP65 (optional)
Housing Material Galvanized steel or aluminum alloy
Plug-in Interface Available (standard modular outlet design)
Installation Method Ceiling mounted / suspended / horizontal installation
Surface Treatment Powder coating / anti-corrosion treatment
Standard Compliance IEC 61439 / GB 7251.6
Operating Temperature -20°C to +60°C
Application Commercial lighting, industrial lighting, public infrastructure

Applications of Lighting Busway System

Lighting busway systems are widely used in environments requiring flexible and reliable lighting power distribution:

  • Commercial buildings: shopping malls, offices, supermarkets
  • Industrial facilities: factories, warehouses, workshops
  • Public infrastructure: airports, subways, exhibition centers
  • Special environments: hospitals, data centers, clean rooms

Why Choose Fenghua Electric as Your Lighting Busway Supplier?

  • Over 20 years of experience in busway and power distribution systems
  • Strong R&D capability with patented structural designs
  • Support for customized lighting busway solutions
  • Stable supply chain and fast delivery
  • Certified products (CCC) with reliable quality assurance
Fenghua is a professional Lighting Busway System manufacturer and supplier in China. Welcome to import quality products from our factory here.
News Recommendations

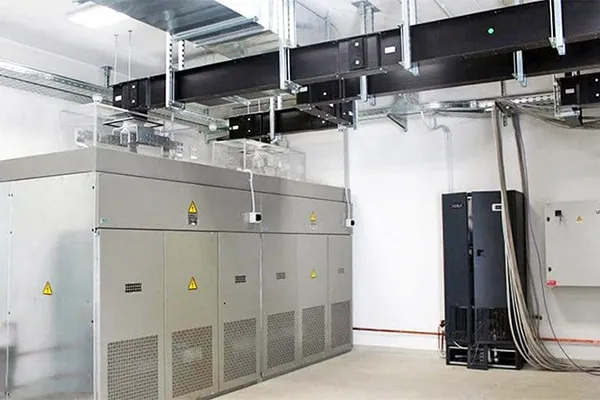

The Function of Air Insulated Busducts
The Function of Air Insulated BusductsView More >>

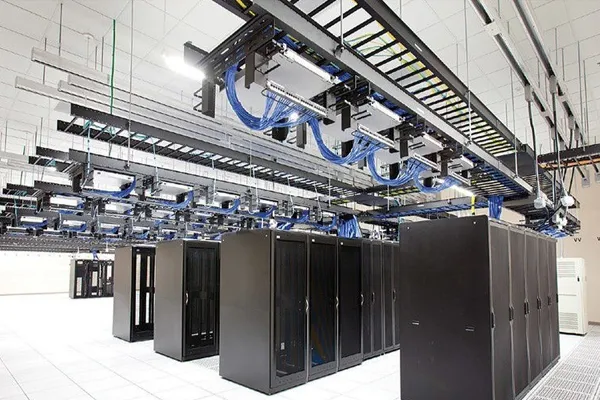

What are the application scenarios for enclosed busbar trunking systems?
What are the application scenarios for enclosed busbar trunking systems?View More >>

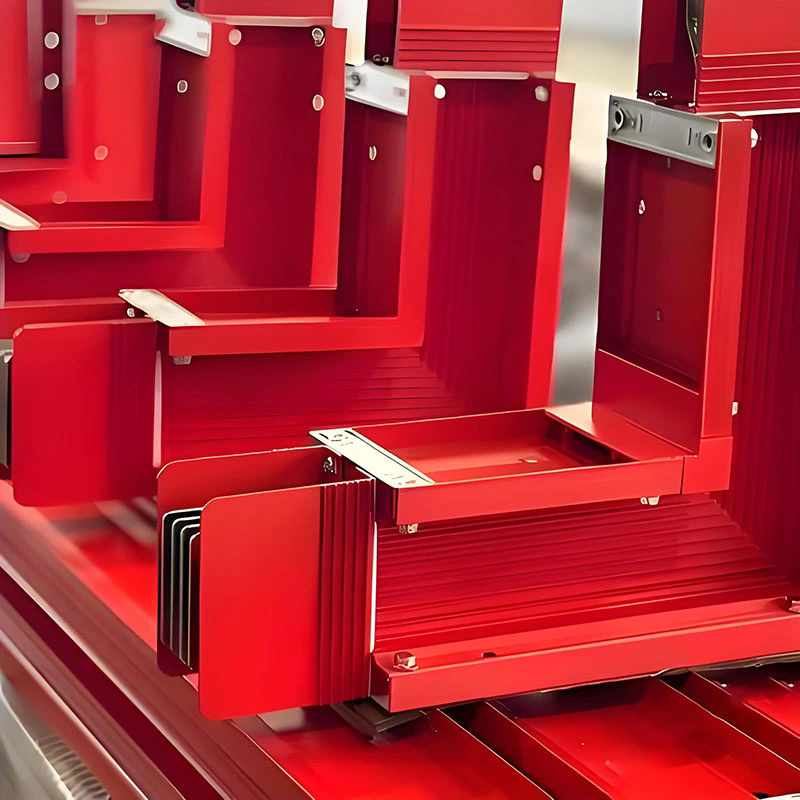

How Does a Fireproof Busway Enhance Electrical Safety?
How Does a Fireproof Busway Enhance Electrical Safety?View More >>

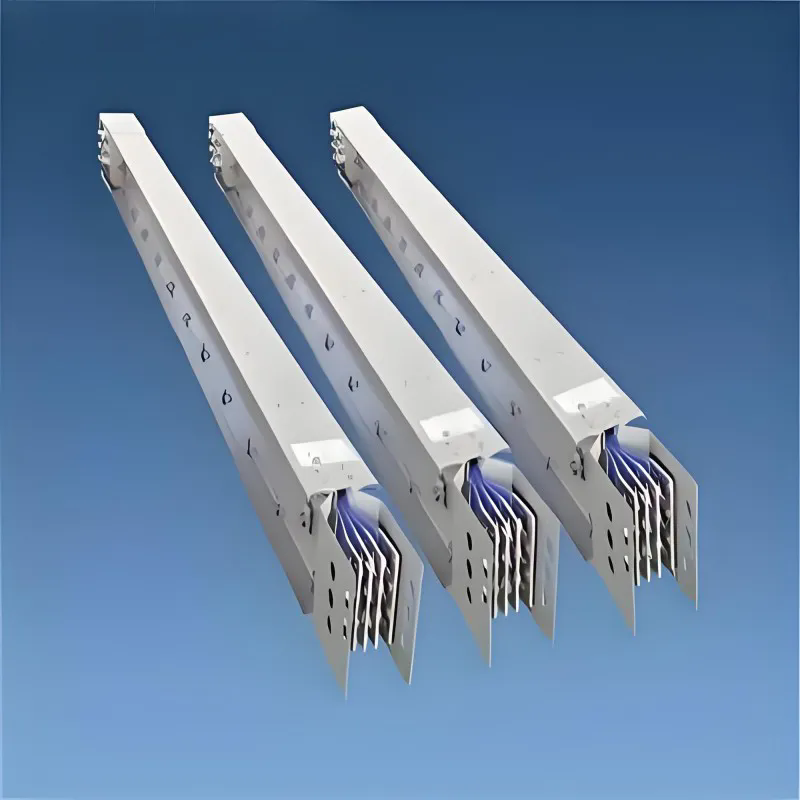

How Does an Air Insulated Busway Enhance Electrical Distribution Efficiency?
How Does an Air Insulated Busway Enhance Electrical Distribution Efficiency?View More >>

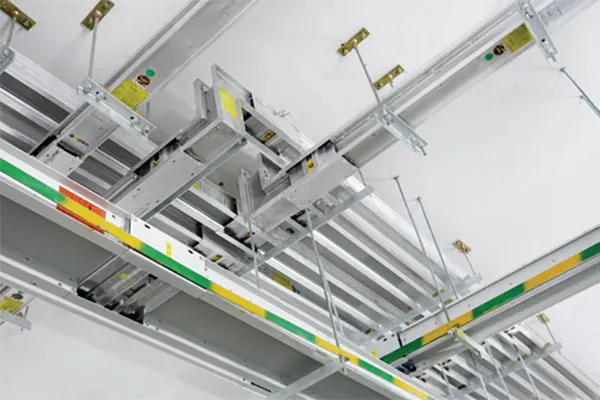

Materials for Waterproof Busducts
Materials for Waterproof BusductsView More >>

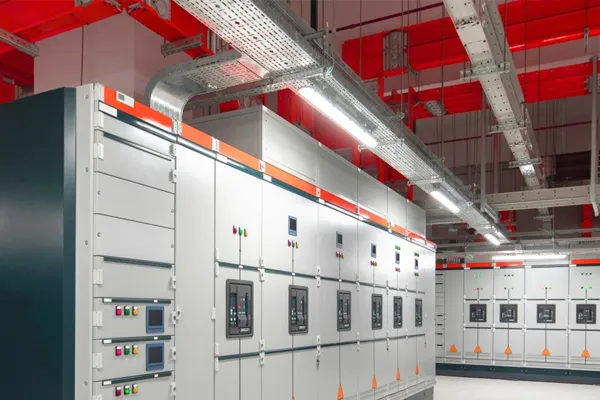

Characteristics of Compact Busducts
