Vertical Air Insulated Busway

Vertical Air Insulated Busway is a reliable power distribution solution designed for efficient vertical electrical transmission in modern buildings and industrial facilities. Using air as the insulation medium, the system provides excellent heat dissipation, stable electrical performance, and enhanced operational safety.

Compared with traditional cable systems, the busway offers higher current capacity, easier installation, and improved space utilization. It is widely used in high-rise buildings, substations, data centers, and industrial plants where stable vertical power distribution is required.

With high-purity copper conductors and a durable enclosure structure, the Vertical Air Insulated Busway ensures long service life, low energy loss, and minimal maintenance.

Compared with other busbar types

Advantages

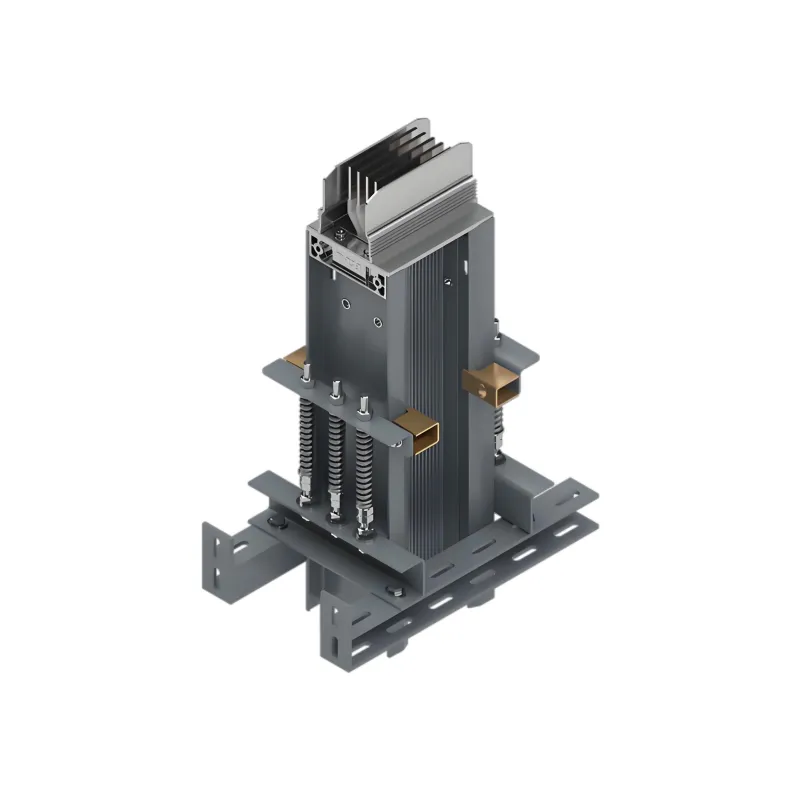

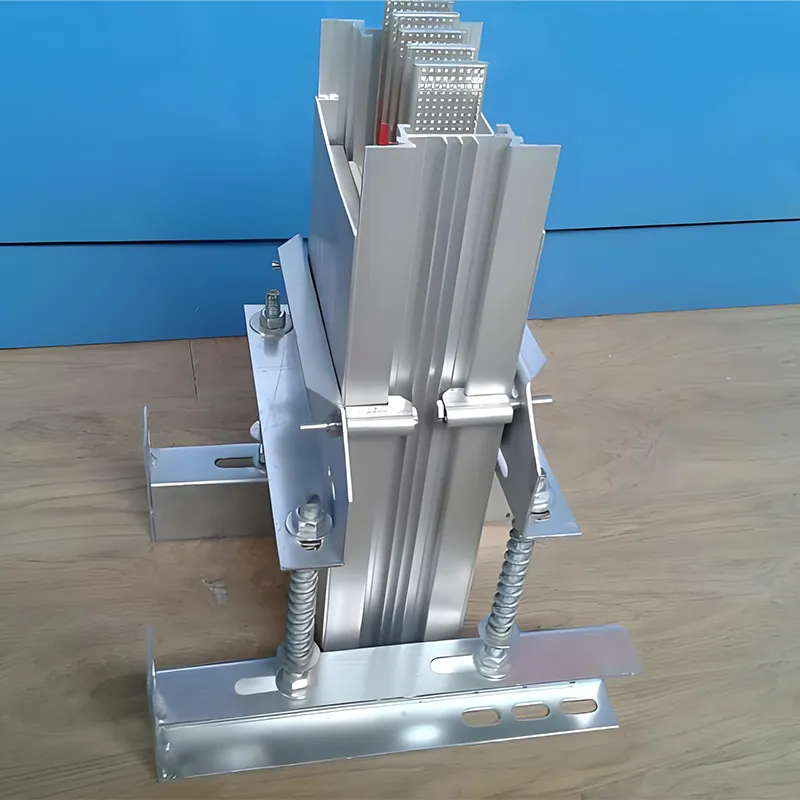

1. Designed for Vertical Power Distribution with Easy Installation

The Vertical Air Insulated Busway is specifically engineered for vertical power transmission applications. Its optimized structural design includes dedicated mounting brackets and precision connection components, ensuring secure and accurate assembly. The modular configuration allows fast installation without complex adjustments, making it suitable for various building heights and vertical layouts. This significantly reduces installation time, lowers labor costs, and improves construction safety and efficiency. It is widely used in high-rise buildings, substations, and large industrial facilities requiring vertical power distribution.

2. Excellent Insulation Performance for Reliable Safety

Using air as the primary insulation medium, the system eliminates the need for additional insulating materials while maintaining superior electrical safety. The separated phase design provides extended clearance and creepage distances that exceed standard safety requirements. This effectively prevents risks such as short circuits or electrical leakage. The busway also demonstrates strong thermal and mechanical stability, enabling it to withstand structural stress during vertical installation. With no risk of insulation aging, the system ensures stable and reliable long-term operation.

3. High Conductivity for Efficient Energy Transmission

The conductors are made of 99.99% high-purity electrolytic copper, delivering outstanding electrical conductivity. Each conductor is treated with tin plating and PVC heat-shrink insulation, providing enhanced protection against oxidation and environmental impact. This design minimizes power loss and improves overall transmission efficiency, making the system ideal for high-current vertical power distribution. As a result, it helps reduce energy consumption and long-term operational costs.

4. Durable Structure with Low Maintenance Requirements

The enclosure features a one-piece roll-formed corrugated structure, manufactured from high-quality cold-rolled steel or aluminum alloy. This design provides excellent mechanical strength and ensures a protection level of IP40 or higher, offering reliable grounding and dust resistance. The robust construction allows the busway to perform reliably in demanding installation environments. Manufactured under strict quality control and certified by ISO9001, ISO14001, and CCC, the system delivers a long service life while significantly reducing maintenance frequency and operational costs.

Core Parameters

Application

The Vertical Air Insulated Busway is specifically designed for vertical power transmission and offers excellent adaptability for a wide range of electrical distribution environments. With its modular structure and reliable insulation performance, the system ensures stable and efficient power delivery in various vertical installation scenarios.

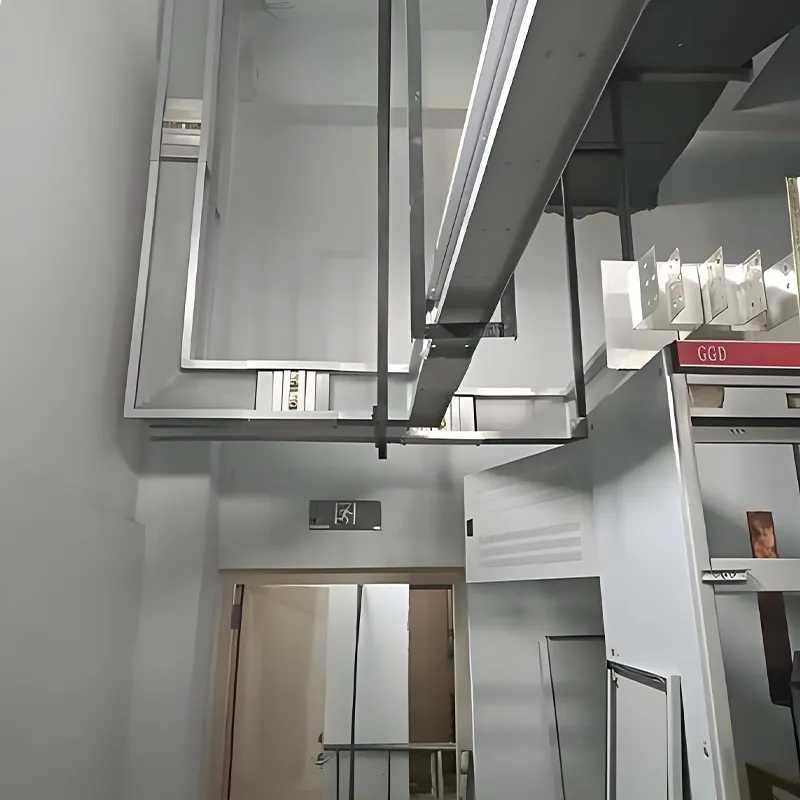

It is widely used in high-rise buildings, including office towers, commercial complexes, and residential buildings, where reliable vertical power distribution between floors is essential. The busway system enables efficient electricity transmission from main distribution rooms to multiple levels while saving installation space and improving power management efficiency.

In addition, the system is suitable for substations and industrial facilities, where vertical electrical connections and power distribution are required. Its durable structure allows it to operate reliably in challenging environments such as industrial plants with dust, vibration, or continuous operation conditions.

The robust mechanical design also helps withstand structural stress during vertical installation, ensuring long-term stability and safety. With flexible configuration options, the Vertical Air Insulated Busway can meet both standard and customized installation requirements, providing a reliable solution for modern vertical power distribution systems.

FAQ

1. What is a Vertical Air Insulated Busway?

A Vertical Air Insulated Busway is a power distribution system designed for vertical electrical transmission in buildings. It uses air as the insulation medium and provides efficient and safe power delivery between floors.

2. What are the advantages of air insulated busway systems?

Air insulated busways offer better heat dissipation, lower installation costs, easier maintenance, and reliable electrical insulation compared to traditional cable systems.

3. Where is Vertical Air Insulated Busway commonly used?

It is commonly used in high-rise buildings, substations, industrial plants, and large commercial facilities where vertical power distribution is required.

4. What materials are used for the conductors?

Most high-quality busways use high-purity electrolytic copper or aluminum conductors to ensure excellent electrical conductivity and durability.

5. Can the busway system support high current loads?

Yes. Vertical Air Insulated Busways are designed to handle high current loads and are suitable for large-scale power distribution systems.

6. Is the installation complicated?

No. The modular design allows quick installation with standard connection components, significantly reducing construction time.

7. How long is the service life of the busway?

With proper installation and maintenance, the system can operate reliably for decades in industrial and commercial environments.

Company Strength Guarantee

Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd., a professional enterprise with nearly 20 years of experience in electrical appliance manufacturing, possesses complete qualifications, multiple patented technologies, and a comprehensive production and R&D system with stringent quality control processes. Equipped with advanced production equipment and a professional R&D team, the company strictly controls every step from product design, raw material procurement, production processing to finished product testing, ensuring that every Vertical Air Insulated Busway meets national standards and industry specifications. Simultaneously, the company provides comprehensive professional services, covering product selection, installation guidance, after-sales maintenance, and other aspects, offering customers all-round technical support for worry-free procurement and peace of mind.

Procurement Consultation

Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd.'s Vertical Air Insulated Busway, with its precise vertical adaptability, superior product quality, and efficient power transmission performance, has become the preferred product in the vertical power distribution field, meeting various needs such as bulk procurement and non-standard customization. We welcome new and old customers to inquire about details and discuss procurement. We will work with you to build a safe, efficient, and stable vertical power transmission system, facilitating the steady progress of various projects, with high-quality products, reasonable prices, and professional services.
