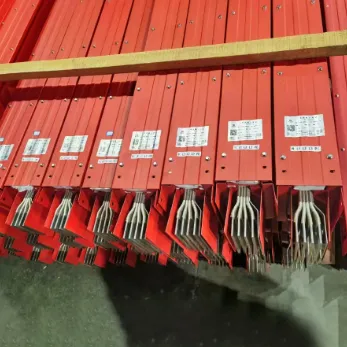

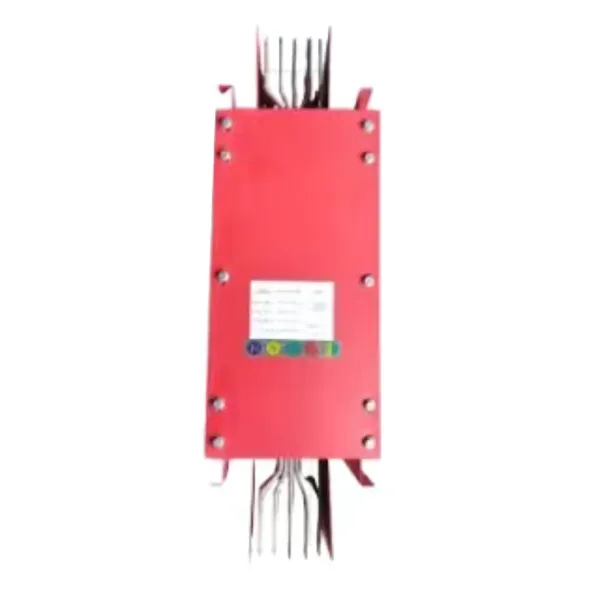

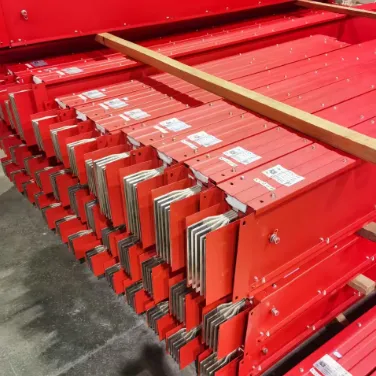

Flame Retardant Sandwich Busbar

Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd. specializes in the research, development, production, and sales of high and low voltage power distribution equipment. Its Flame Retardant Sandwich Busbar is a core power distribution product for modern buildings, industrial plants, commercial complexes, data centers, and other applications. Using air as the primary insulation medium, the product employs high-quality conductive materials and a robust protective structure, offering advantages such as high current carrying capacity, low temperature rise, safety and reliability, convenient installation, and strong scalability. It can replace traditional cables to achieve efficient and stable high-current transmission, providing safe, energy-saving, and durable backbone power transmission solutions for various power distribution projects.

What is Flame Retardant Sandwich Busbar?

The Flame Retardant Sandwich Busbar is a high-performance electrical busbar designed for safe and efficient power distribution. It features a compact sandwich structure, where conductive copper or aluminum layers are interleaved with high-quality flame-retardant insulation. This design ensures superior current-carrying capacity, excellent heat dissipation, and maximum safety against fire hazards. Ideal for industrial, commercial, and high-density electrical systems, these busbars offer reliable performance in demanding environments.

Key Features:

Flame Retardant Insulation: UL94 V-0 or equivalent, preventing fire propagation.

Sandwich Structure: Multiple conductor layers with insulation, compact and mechanically robust.

High Current Capacity: Optimized for heavy-duty industrial and commercial applications.

Easy Installation: Modular design suitable for power distribution cabinets and busway systems.

Durable and Reliable: Resistant to overheating, vibration, and environmental stress.

Core Advantages

Safe and Stable with Excellent Insulation

Utilizing flame-retardant insulation materials, combined with a reasonable conductor spacing and protective design, the insulation strength is high, effectively avoiding safety hazards such as leakage, short circuits, and breakdowns, resulting in more reliable operation.

High Current Carrying Capacity and Low Temperature Rise and Loss

Selecting high-purity conductors, the insulation boasts excellent conductivity and low resistance, resulting in excellent temperature rise control under high current conditions, less heat generation, and lower energy consumption, leading to greater energy savings over long-term use.

Robust Structure and Strong Protection

The outer shell is constructed from high-strength profiles, offering high mechanical strength, impact resistance, and corrosion resistance. Protection levels reach IP54 and above, adapting to various complex indoor and outdoor installation environments.

Easy Installation and High Construction Efficiency

Modular and segmented design allows for simple and quick on-site assembly, neat and aesthetically pleasing wiring, and minimal space occupation, significantly shortening the construction cycle and reducing labor and installation costs.

Flexible Expansion and Convenient Maintenance

Branch interfaces can be flexibly added according to power demand. Future expansion, upgrades, and maintenance do not require large-scale dismantling and modification, resulting in lower overall life-cycle costs.

Factory direct supply, guaranteeing both quality and cost-effectiveness. Qingdao Fenghua Electric manufactures its own products, with strict quality control from raw materials to finished products, meeting relevant national standards and specifications. Bulk purchases offer greater price advantages.

Technical Parameters

Applicable Scenarios

Industrial plants: machinery factories, electronics factories, chemical plants, textile factories, food processing plants, etc.

Commercial buildings: shopping malls, supermarkets, hotels, office buildings, convention centers

Public buildings: hospitals, schools, stadiums, train stations, airport facilities

Data centers: server room power distribution, server power supply, large-scale IDC power distribution systems

High-rise buildings: main power distribution for residential buildings, office buildings, and mixed-use complexes

Renovation: cable replacement, power distribution upgrades, load expansion projects

FAQ

1.Where are these busbars commonly used?

Applications include industrial plants, data centers, high-rise buildings, subways, and other electrical distribution systems.

2.How does the sandwich design help?

The multi-layer structure improves mechanical strength, heat dissipation, and reduces overall size compared to traditional busbars.

3.What safety certifications are available?

Many busbars comply with UL, IEC, and other international flame-retardant standards.

4.Can they carry high currents safely?

Yes, the design and materials allow for high current loads while maintaining low temperature rise.

5.How is it installed?

Modular and compact, these busbars can be mounted in cabinets or along busway channels, enabling easy connection and maintenance.

6.What are the main advantages over conventional busbars?

Better fire resistance, compact footprint, improved reliability, and reduced installation time.

7.What materials are used in these busbars?

Conductors are typically copper or aluminum, while insulation uses flame-retardant, high-temperature resistant materials.

Why Choose Qingdao Fenghua Electric?

Professional Manufacturer: Years of experience in power distribution equipment manufacturing, mature technology, and stable processes.

Reliable Quality: Strict quality control processes ensure every batch meets engineering requirements.

Customization Capability: Non-standard customization available based on current, size, routing, and interface requirements.

Engineering Services: Providing technical consultation, solution design, on-site guidance, and other support.

After-Sales Guarantee: A comprehensive after-sales service system with rapid response, ensuring worry-free procurement.

Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd. prioritizes safety, quality, efficiency, and service, committed to providing domestic and international customers with high-performance, cost-effective Flame Retardant Sandwich Busbars and complete power distribution solutions. We look forward to long-term cooperation with engineering companies, design institutes, and purchasing units worldwide to create exemplary safe, stable, efficient, and energy-saving power distribution projects.‌
