Horizontal Air Insulated Busway

Fenghua Electric has been deeply involved in the electrical manufacturing industry for nearly 20 years. With complete qualifications and numerous patented technologies, we focus on providing high-quality electrical transmission equipment for various scenarios. Our company specializes in developing and producing Horizontal Air Insulated Busways for horizontal power transmission applications. These buses effectively avoid the pain points of traditional horizontal power transmission equipment, such as cumbersome installation and poor adaptability. Balancing safety, efficiency, and convenience, they are directly adaptable to various scenarios including workshops, factories, and office buildings, providing a one-stop solution for horizontal power transmission with outstanding cost-effectiveness.

What is Horizontal Air Insulated Busway?

The Horizontal Air Insulated Busway is a high-performance electrical power distribution solution designed for horizontal energy transmission in factories, workshops, and office buildings. Manufactured by a trusted China Manufacturer and Supplier, this system uses air as the primary insulation medium combined with high-purity copper conductors to deliver high efficiency, low energy loss, and strong insulation.

Its separated-phase modular design allows quick installation, flexible layout adaptation, and easy integration with existing electrical infrastructure. The Horizontal Air Insulated Busway ensures safe, durable, and cost-effective power distribution, reducing maintenance requirements while maintaining reliable performance under high temperature and heavy load conditions. Ideal for procurement from a certified China Factory, it provides a complete solution for horizontal electrical transmission in industrial and commercial environments.

Key features and purposes include:

Efficient Power Transmission - High-conductivity conductors reduce energy loss and heat generation.

Air Insulation - Uses air instead of solid insulation, improving safety, reliability, and thermal performance.

Separated-Phase Design - Each phase is isolated, preventing short circuits and enhancing safety.

Flexible Installation - Modular, easy to install, and adaptable to different layouts.

Durability & Safety - Resistant to high temperatures, corrosion, and wear, providing long-term service.

Multi-Scenario Use - Suitable for industrial, commercial, and office environments where horizontal power distribution is needed.

In short, a Horizontal Air Insulated Busway replaces traditional cabling for horizontal electrical transmission, offering safer, more efficient, and easier-to-install power distribution solutions.

Advantages

Highly adaptable to horizontal environments, easy and efficient installation: Specifically designed for horizontal power transmission scenarios, its optimized horizontal installation structure requires no complex adjustments. It can be flexibly combined with straight sections, elbows, T-shaped branches, and other connectors for convenient assembly, adapting to various horizontal installation scenarios. This significantly shortens the construction cycle, reduces labor costs, and improves construction efficiency.

Excellent insulation performance, reliable safety: Using air as the core insulation medium, no additional insulation material is needed. Combined with a separate phase-to-phase isolation structure, the phase-to-phase safety clearance far exceeds national standards, effectively preventing short circuits, leakage, and other safety hazards. It exhibits excellent dynamic and thermal stability, preventing insulation aging issues over long-term use and ensuring safe and stable equipment operation.

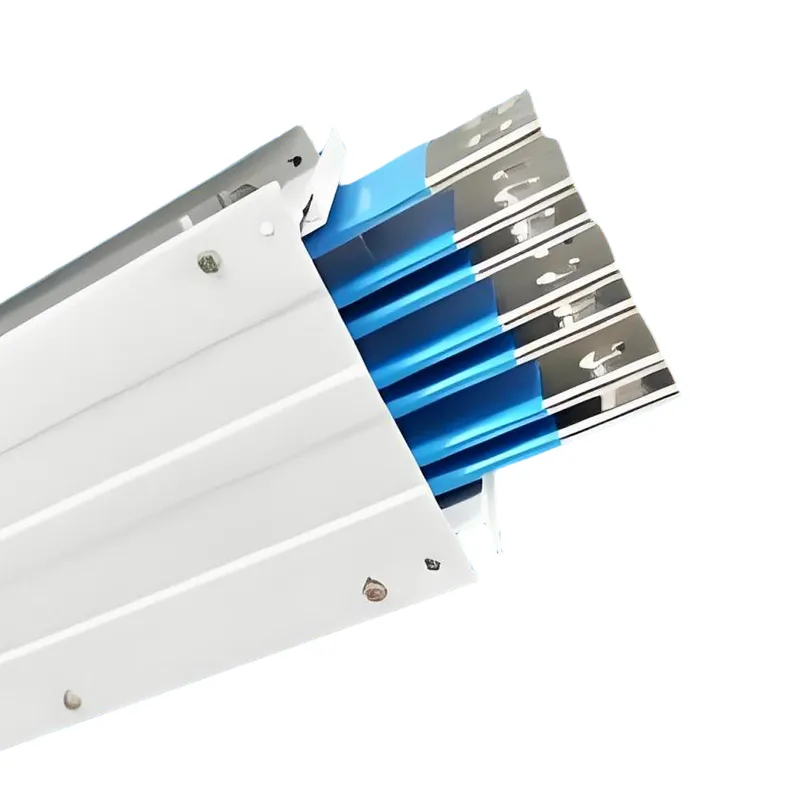

High conductivity, significant energy saving: Utilizing high-purity electrolytic copper with a copper content of over 99.99% as the conductor, the surface is treated with double protection by tin plating and PVC heat-shrink tubing. This results in excellent conductivity and extremely low energy loss, effectively reducing electricity costs over long-term use. It is suitable for high-current horizontal transmission requirements, ensuring efficient power transmission.

Robust and durable with low maintenance costs: The outer shell adopts a one-time roll-formed corrugated structure, made of cold-rolled steel or aluminum alloy, with high mechanical strength and a protection level of no less than IP40. It has good dustproof and grounding performance and can adapt to complex working environments. The product undergoes strict quality control throughout the process and has passed multiple certifications such as ISO9001, ISO14001, and 3C. It has a long service life and can effectively reduce later maintenance costs.

Core Parameters | Product Strength

Applications

The Horizontal Air Insulated Busway is widely used for efficient and safe horizontal power distribution across various industries and commercial facilities. Common applications include:

Industrial Factories - Efficiently distribute power to machinery and production lines while reducing energy loss.

Workshops & Warehouses - Flexible horizontal layout for easy installation and system expansion.

Office Buildings - Reliable and safe power transmission for lighting, HVAC, and IT infrastructure.

Data Centers - Provides consistent, low-loss power delivery for critical equipment.

Shopping Malls & Commercial Centers - Modular design allows easy adaptation to complex electrical layouts.

Manufacturing Plants - Supports high-load operations with safe, long-lasting, and energy-efficient distribution.

FAQ

1. What is it used for?

It is designed for horizontal electricity transmission in factories, workshops, office buildings, and other commercial facilities, providing safe, efficient, and flexible power distribution.

2. What are the key benefits?

High conductivity, low energy loss, strong insulation, modular installation, corrosion resistance, and long service life.

3. Can it be customized to fit different layouts?

Yes, its modular and separated-phase design allows flexible installation and easy adaptation to various horizontal power distribution needs.

4. What materials are used in the busway?

High-purity copper conductors and air as the primary insulation medium, ensuring excellent conductivity, thermal stability, and safety.

5. Is it suitable for high-load industrial environments?

Absolutely. It is designed to handle heavy loads, resist high temperatures, and maintain long-term operational safety.

6. How can I procure a Horizontal Air Insulated Busway?

Fenghua Electric is a certified China Manufacturer, Supplier, and Factory, offering full-process service from design to delivery for global procurement needs.

Feng Hua's strength guarantees

Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd., with nearly 20 years of experience in electrical appliance manufacturing, possesses complete qualifications, numerous patented technologies, and a comprehensive production and R&D system. The company boasts advanced production equipment and a professional R&D team, implementing rigorous control throughout the entire process from product design and production to testing. Every product undergoes multiple withstand voltage and short-circuit tests, ensuring reliable quality. Simultaneously, the company provides end-to-end services, covering selection, installation, and after-sales support, ensuring worry-free procurement and peace of mind for customers.

Our Horizontal Air Insulated Busway is highly adaptable, reliable, and offers excellent value, meeting various needs including bulk purchases and non-standard customization. We welcome customers to inquire for details and discuss procurement. We will provide you with customized quotations and selection solutions, working together to build a safe, efficient, and stable horizontal power transmission system.
