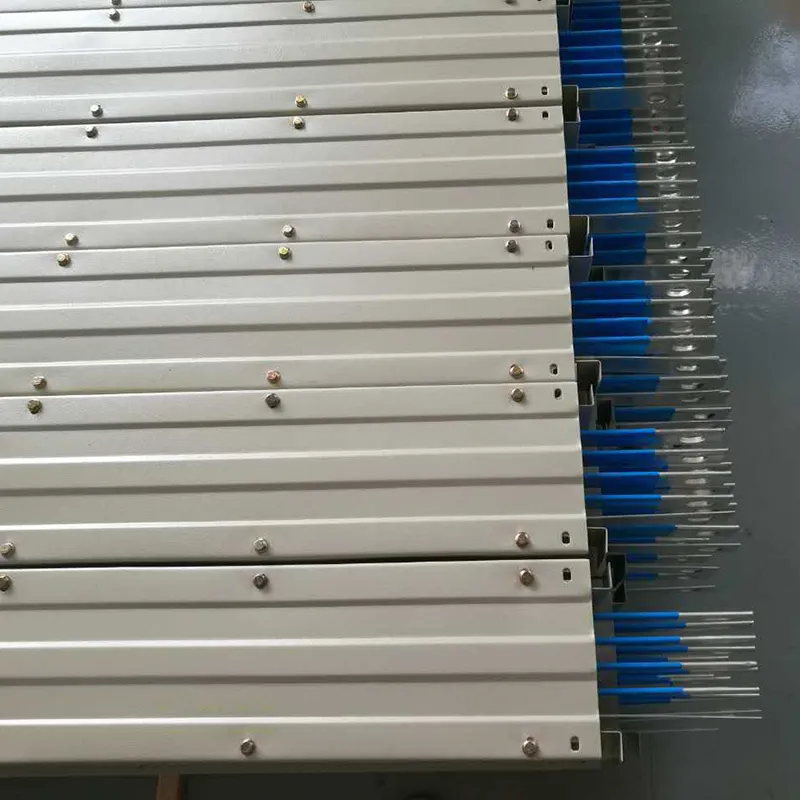

Air Insulated Aluminum Busway

Air Insulated Aluminum Busways utilize high-quality aluminum alloy conductors and an air-insulated structure, offering core advantages such as high conductivity, low loss, strong insulation, and lightweight construction. Compared to traditional copper busbars, they offer better cost-effectiveness, convenient installation, efficient heat dissipation, and reliable protection, achieving an IP54 protection rating or higher. This effectively prevents safety hazards such as leakage and short circuits, making them suitable for the backbone transmission needs of various low-voltage power distribution systems.

Our company relies on mature manufacturing processes and a rigorous quality control system, managing the entire process from raw material procurement to finished product delivery. Our products comply with relevant national standards for low-voltage power distribution equipment. We support customized designs based on drawings, rapid delivery of in-stock items, bulk purchases, and project-specific supply. We can customize parameters such as current, size, and interfaces according to customer needs, while providing comprehensive technical support and after-sales guarantees.

Qingdao Fenghua Electric, with quality as its core and service as its guide, is committed to providing high-performance, cost-effective Air-Insulated Aluminum Busway products to domestic and international engineering contractors and purchasing units, helping to create safe, stable, efficient, and energy-saving power distribution projects. We sincerely invite partners from all sectors to discuss cooperation and promote mutual development.

What is an Air Insulated Aluminum Busway?

Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd.'s Air Insulated Aluminum Busway is a high-efficiency power transmission product specifically designed for low-voltage power distribution systems. Using high-quality aluminum alloy as the conductor and air as the primary insulation medium, it replaces traditional copper busbars and cables, offering advantages such as superior conductivity, light weight, low loss, and easy installation. It can achieve stable transmission of high current and is suitable for power distribution needs of different scales and scenarios. The products strictly adhere to relevant national standards for low-voltage power distribution equipment. From raw material selection to finished product delivery, multiple quality inspections are conducted throughout the entire process to ensure that every product meets engineering-grade requirements, safeguarding the safe and stable operation of the power distribution system.

Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd. has been deeply involved in the R&D, production, and sales of high and low voltage power distribution equipment for many years and is a professional manufacturer and supplier of Air Insulated Aluminum Busways in China. Relying on mature production processes and a strict quality inspection system, the company meticulously crafts high-quality Air Insulated Aluminum Busway, breaking through the limitations of traditional busbars. With aluminum alloy conductors as the core and air insulation structure, it provides safe, efficient, energy-saving, and cost-effective backbone power transmission solutions for various power distribution scenarios. It is widely used in industrial, commercial, and public buildings and has won unanimous recognition from customers in all sectors.

Working Principle

The working principle of the Air Insulated Aluminum Busway is relatively simple: Current is transmitted through aluminum busbars. Electrical insulation is achieved between busbars via air gaps. The metal casing provides mechanical protection and grounding. The entire system achieves long-distance power transmission through modular connections. This structure enables efficient heat dissipation, stable current transmission, and safe operation.

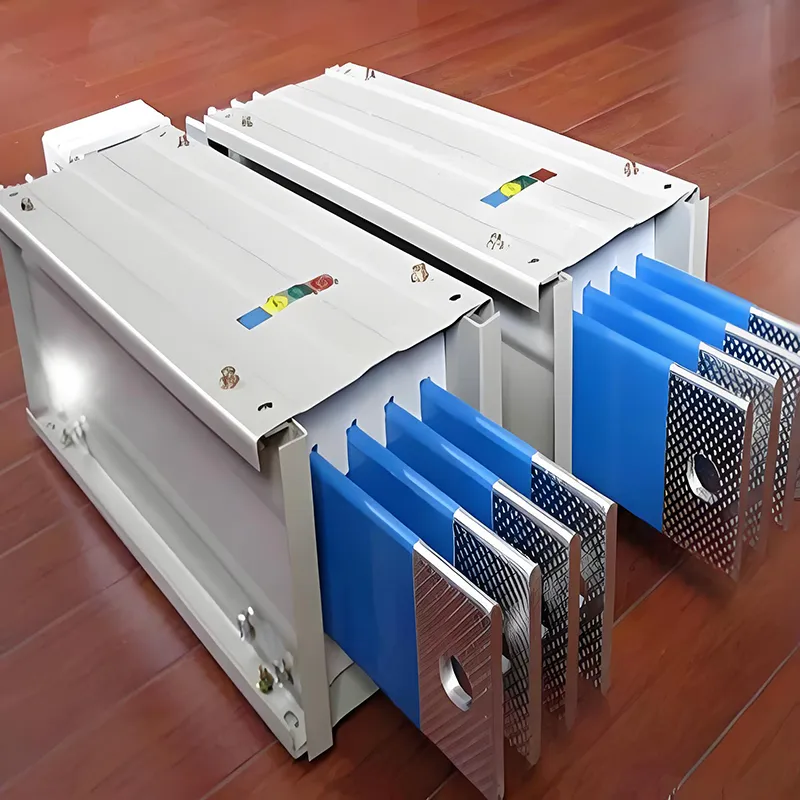

Structural Components

A standard Air Insulated Aluminum Busway typically consists of the following parts:

1) Aluminum Busbars

Main conductive parts. Made of high-purity aluminum. Surface may be tin-plated or anodized to improve conductivity and corrosion resistance.

2) Air Insulation

Maintains safe distance between busbars. Uses air as a natural insulating medium. Effectively reduces temperature rise and enhances heat dissipation.

3) Enclosure

Generally made of cold-rolled steel or aluminum alloy. Provides protection ratings (e.g., IP42, IP54). Prevents external dust or foreign objects from entering.

4) Joint System

Used for connecting different busbar segments. Ensures stable current transmission. Has good conductivity and heat dissipation performance.

5) Support System

Hangers or brackets for mounting. Suitable for horizontal or vertical installation.

Air-Insulated Aluminum Busway vs. Other Busway Systems

Core advantages

Superior Materials, High Conductivity and Efficiency: Utilizing high-purity aluminum alloy conductors, it boasts excellent conductivity, low resistance, and high current transmission efficiency. Compared to traditional copper busbars, it significantly reduces product weight and procurement costs while maintaining conductivity, offering a superior cost-performance ratio.

Air Insulation, Safe and Reliable: Employing an air-insulated structure, coupled with reasonable conductor spacing and protective design, it achieves high insulation strength, effectively eliminating safety hazards such as leakage, short circuits, and breakdowns. It ensures stable operation and can withstand long-term full-load operation.

Lightweight and Easy to Install, Outstanding Efficiency: The lightweight aluminum alloy material, combined with a modular segmented design, allows for simple and quick on-site assembly. Wiring is neat and aesthetically pleasing, occupying minimal space, significantly shortening the construction cycle, reducing labor and installation costs, and improving construction efficiency.

Excellent Heat Dissipation, Low Energy Consumption: The air-insulated structure, combined with the excellent thermal conductivity of aluminum alloy, provides high heat dissipation efficiency. It exhibits excellent temperature rise control under high current conditions, resulting in low heat generation and low energy consumption. Long-term use can effectively reduce the operating costs of the power distribution system.

Upgraded protection, wide compatibility: The casing is made of high-strength profiles, offering high mechanical strength, impact resistance, and corrosion resistance. Protection levels reach IP54 and above, making it suitable for various complex installation environments such as indoor spaces, power distribution rooms, factories, and basements.

Direct from manufacturer, flexible customization: Our company manufactures directly from the factory, eliminating intermediaries and offering significant price advantages for bulk purchases. We support custom designs based on provided drawings, fast shipping of in-stock items, bulk purchases, and project-specific supply. Parameters such as current, size, interfaces, and number of phases can be customized according to customer needs to meet various personalized power distribution requirements.

Technical parameters

Why Choose Fenghua Electric?

Professional Strength: Years of experience in power distribution equipment manufacturing, mature technology, stable processes, and a focus on the R&D and production of Air Insulated Aluminum Busways ensure quality.

Quality Control: A comprehensive quality inspection system is in place from raw material procurement and production to finished product delivery, ensuring every batch meets engineering-grade requirements.

Customization Capabilities: We offer non-standard customization services based on customer needs for current, size, routing, and interfaces, precisely adapting to various power distribution scenarios.

Comprehensive Service: We provide technical consultation, solution design, on-site guidance, and other supporting services. Timely after-sales response resolves various issues encountered during procurement and use, ensuring worry-free purchasing.

High Cost-Effectiveness: Direct factory supply eliminates intermediaries, offering discounts for bulk purchases. Our products are energy-efficient and low-consumption, reducing the total lifecycle cost.

FAQ

1. What are the advantages of Air Insulated Aluminum Busways?

They are lightweight, cost-effective, easy to install, and provide reliable power transmission with good heat dissipation.

2. Where are Air Insulated Aluminum Busways commonly used?

They are widely used in factories, commercial buildings, shopping malls, data centers, and other facilities that require efficient power distribution.

3. Why use aluminum conductors in busways?

Aluminum is lighter and more economical than copper while still providing good electrical conductivity, making it suitable for many power distribution applications.

4. Are Air Insulated Aluminum Busways easy to install and expand?

Yes. They usually adopt a modular design, allowing flexible installation, easy expansion, and convenient maintenance.

5. Are Air Insulated Aluminum Busways reliable?

Yes. With proper design and quality manufacturing, they provide stable electrical performance, good insulation, and long service life.
