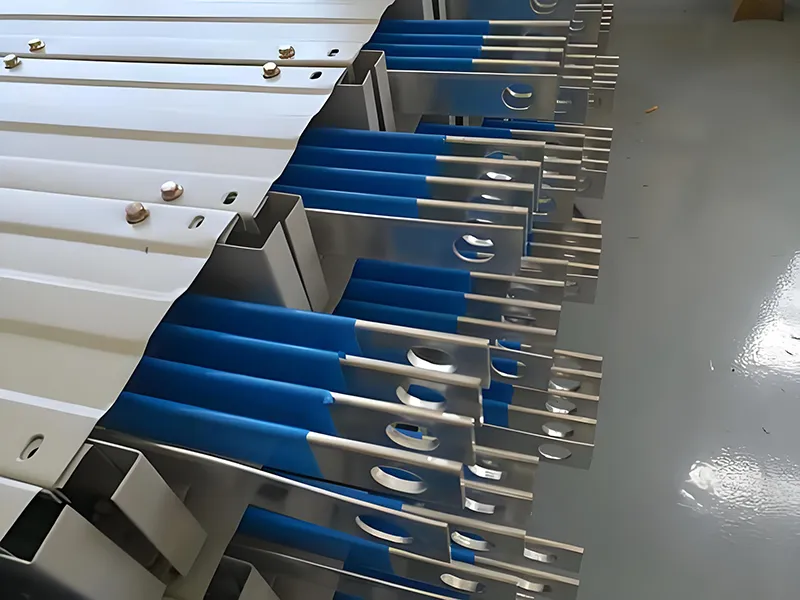

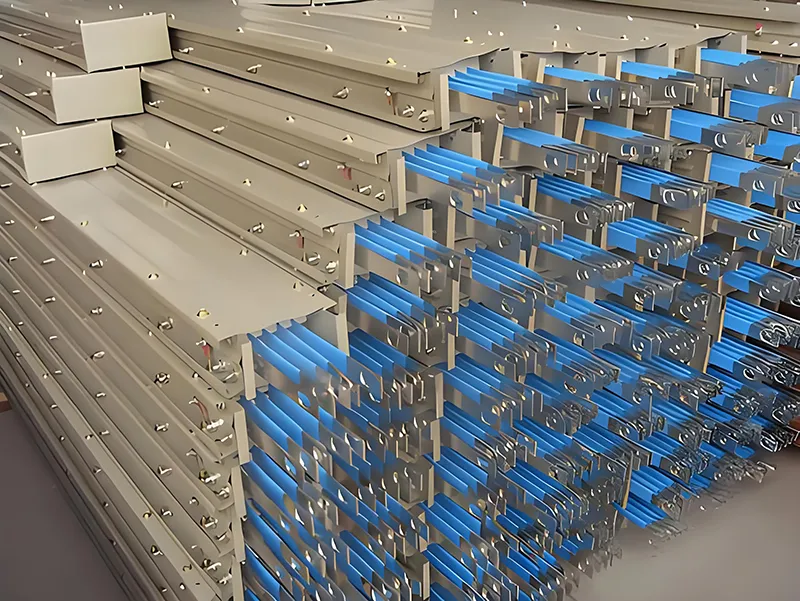

2000A Air Insulated Busway

A 2000A Air Insulated Busway is a high-current transmission device used in power distribution systems, primarily for the safe and efficient transmission of electrical energy in building or industrial systems. It has a rated current of 2000A and uses air as the insulating medium to isolate the conductors from the casing.

•Rated Current: 2000 Amperes

•Insulation Method: Air Insulation

•Equipment Type: Busway / Busbar Trunking System

In simple terms, it is a high-current transmission system that uses metal busbars instead of traditional cables.

Advantages compared to cables

Core Advantages

1. Safety Protection, Multiple Guarantees

Utilizing a split air insulation structure, the phase-to-phase safety clearance and creepage distance far exceed national standards, effectively eliminating short-circuit risks. Internal insulation components are made of high-strength epoxy resin, significantly improving the product's resistance to dynamic and thermal stability, and capable of withstanding instantaneous short-circuit current surges, protecting the power distribution system. Safety guards are installed at the sockets, which can be closed and sealed with lead seals under normal conditions to prevent dust, foreign objects from entering, and accidental operation. Power does not need to be disconnected when plugging in the junction box; the ground wire is always connected before disconnecting, further enhancing operational safety. The product's protection rating reaches IP40, which can be increased to IP54 with dedicated accessories, offering excellent dust and moisture resistance and adaptability to various indoor environments.

2. High-efficiency heat dissipation, energy saving and consumption reduction

The conductor uses high-purity electrolytic copper with a copper content of over 99.99%, and the surface is tin-plated, which is anti-oxidant, highly conductive, has low resistivity, and low power loss. The outer shell is made of Maanshan Iron & Steel's high-strength cold-rolled steel with a one-piece corrugated structure, which combines excellent mechanical strength and heat dissipation performance. Combined with natural air convection, it forms a dual heat dissipation system. Compared with traditional cables, the temperature rise is reduced by 25%, and the current carrying capacity is increased by 30%. When carrying the rated current for a long time, the temperature rise of the conductive parts is strictly controlled within the standard range, eliminating the need for an additional cooling system and reducing operating costs.

3. Convenient installation and flexible adaptation

Adopting a modular design, it supports various connection methods such as straight sections, bends, and T-shaped branches. It can be flexibly combined and spliced according to site requirements to adapt to different wiring scenarios. Equipped with automatic compensation connection and single-bolt clamping terminals, it has high adjustability. The butt-mounting method greatly saves installation time and reduces labor costs. Ample busbar connectors are provided, supporting flexible branching of connector boxes. Loads can be connected to busbar units via the shortest path. Subsequent additions, relocations, or renovations of workshop equipment do not require changes to the busbar system, offering excellent interchangeability. No replacement of the outer casing is needed when adjacent current ratings change.

4. Robust and Durable Structure

The outer casing is manufactured using a one-piece molding process, resulting in high mechanical strength. With a span of 6m, the busbar center can bear a load of 60kg. Under non-uniform temperature changes, the center offset of the casing does not exceed 10mm, providing strong vibration and impact resistance. The casing surface uses an electrostatic spraying process for corrosion and rust prevention, extending service life. All components undergo rigorous testing. The product has passed power frequency withstand voltage and thermal stability tests, showing no significant deformation after testing. Under normal conditions, the insulation resistance of each section is not less than 50MΩ, allowing for long-term safe operation under full load, with a service life of decades.

5. Compliance and Certification, Reliable Quality

Qingdao Fenghua Electric Manufacturing Co., Ltd., as a professional manufacturer of power transmission and distribution equipment, possesses a complete production and testing system. Our products undergo rigorous quality control, hold multiple qualification certificates and patented technologies, and comply with relevant national industry standards and international specifications. Through testing of multiple core indicators such as power frequency withstand voltage, insulation resistance, and temperature rise, we ensure that every product meets design standards, providing customers with reliable quality assurance.

Technical parameters

Applicable Scenarios

The Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd. 2000A Air Insulated Busway, with its high current transmission capacity, safe and reliable performance, and flexible installation methods, is widely used in the following scenarios:

Industrial Sector: Industrial plants, high-energy-consuming workshops, manufacturing production lines, etc., to meet the power supply needs of high-current equipment;

Building Sector: High-rise buildings, commercial complexes, office buildings, residential communities, etc., serving as a main power distribution line to achieve efficient power distribution;

Power Sector: Substations, distribution rooms, transformer and distribution cabinet connections, connections between distribution cabinets, etc.;

Other Scenarios: Data centers, rail transit supporting facilities, hospitals, schools, and other places with high requirements for power supply stability and security.

Product Structure

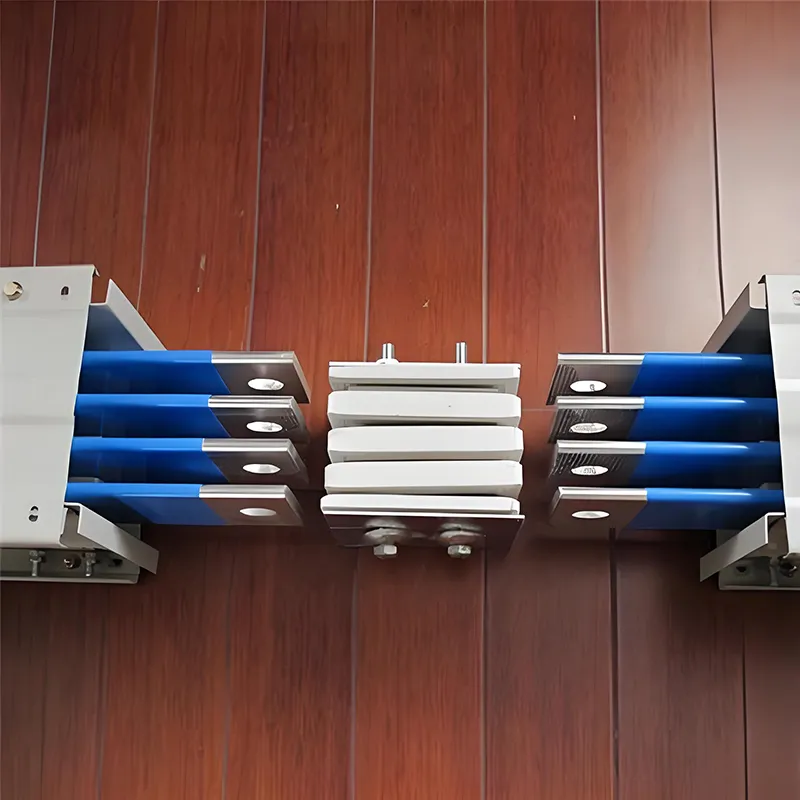

The product is composed of a conductor unit, an insulation support unit, a housing unit, and a connection unit. It features a compact and rationally designed structure:

Conductor Unit: High-purity electrolytic copper busbar, tin-plated for excellent conductivity and reduced power loss;

Insulation Support Unit: High-strength epoxy resin insulation components, providing phase-to-phase isolation to ensure insulation performance and improve dynamic and thermal stability;

Housing Unit: One-piece corrugated cold-rolled steel housing, electrostatically sprayed for corrosion and rust prevention, combining mechanical strength and heat dissipation, while also providing grounding protection;

Connection Unit: Automatically compensated connectors and single-bolt clamping terminals for convenient and reliable connection, effectively reducing contact resistance.

Purchase Notes

1. Products can be customized in different lengths and wiring methods to meet specific customer needs and on-site cabling requirements.

2. All products come with complete quality inspection reports and certificates of conformity, supporting on-site acceptance.

3. We provide professional installation guidance services to assist customers in completing installation and commissioning, ensuring normal product operation.

4. We have a comprehensive after-sales service system. For any quality issues during the product warranty period, we will respond promptly and provide repair or replacement services.

5. We welcome customers to contact us for inquiries, on-site visits, and to discuss purchase matters. We are dedicated to providing you with high-quality products and services!

FAQ

1. What materials are used for the conductors in a 2000A busway?

The conductors are typically made of high-conductivity copper or aluminum busbars. Copper busbars provide higher conductivity and durability, while aluminum busbars offer a more cost-effective solution for large power distribution systems.

2. What are the advantages of air insulated busway systems?

Air insulated busway systems offer several advantages:

•High current carrying capacity

•Excellent heat dissipation

•Modular and flexible installation

•Easy maintenance and expansion

•Lower installation space compared to cable systems

3. Where is a 2000A air insulated busway commonly used?

A 2000A air insulated busway is widely used in:

•Industrial manufacturing plants

•Data centers

•Commercial buildings

•Shopping malls

•Hospitals

•Airports and transportation hubs

It is ideal for facilities that require stable and high-capacity power distribution.

4. How does an air insulated busway differ from a cable system?

Compared with traditional power cables, air insulated busways provide:

•Higher current capacity

•Better thermal performance

•Easier system expansion

•More reliable connections

•Faster installation for large electrical loads

5. What is the typical voltage range for a 2000A air insulated busway?

Most 2000A air insulated busway systems are designed for low-voltage distribution, typically ranging from 380V to 690V, depending on the project requirements and electrical standards.

6. Is a 2000A air insulated busway safe for long-term operation?

Yes. A properly designed and installed 2000A air insulated busway includes protective metal enclosures, insulation supports, and grounding systems, ensuring safe and reliable operation over long service periods.

7. Can a 2000A busway system be expanded in the future?

Yes. One of the key advantages of a busway system is its modular design. Additional busway sections or tap-off units can be added later to expand the electrical distribution network without major reconstruction.
