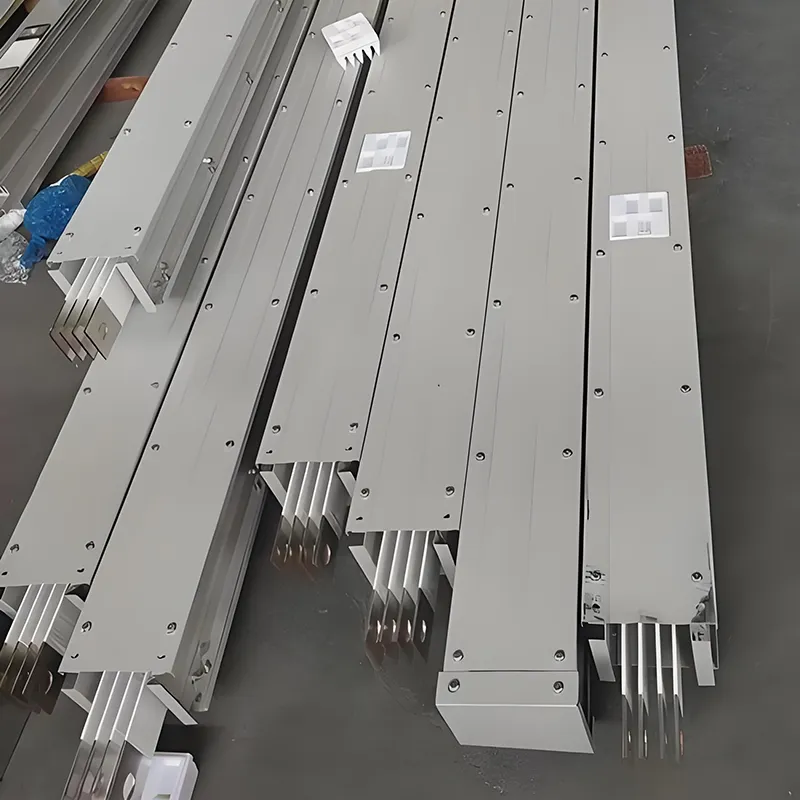

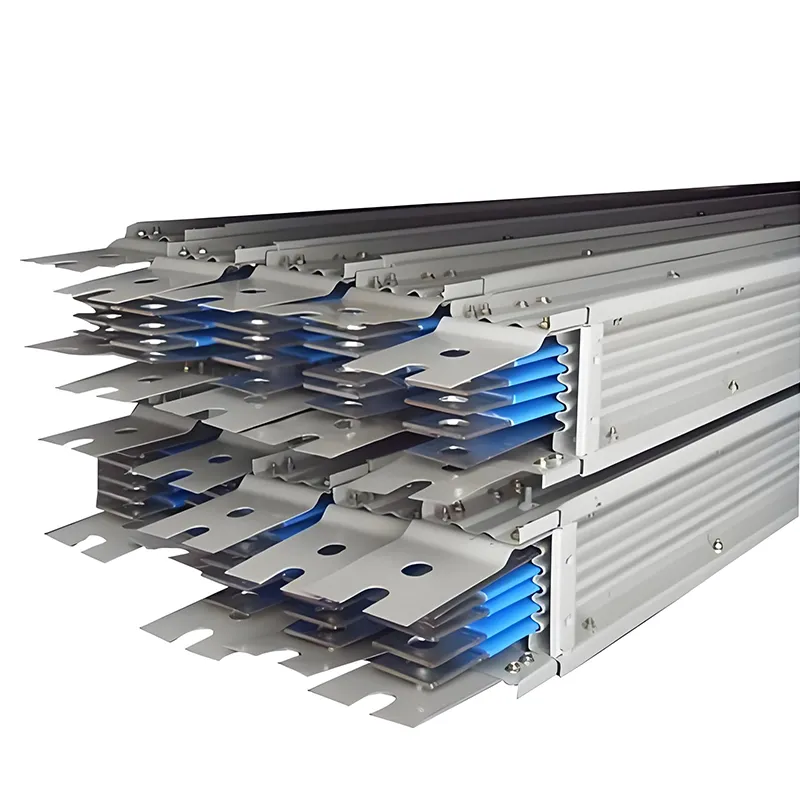

630A Air Insulated Busway

The 630A Air Insulated Busway is a high-performance electrical distribution system designed for mid-voltage power transmission up to 630 amperes. It functions as a compact, modular conductor assembly, transmitting large currents efficiently while ensuring operational safety. Unlike conventional cable or duct-based solutions, the busway leverages air as the primary insulation medium, coupled with phase-separated structures and high-purity copper conductors, resulting in superior electrical performance and long-term reliability.

Key Applications:

Industrial factories and manufacturing plants

Commercial complexes and office buildings

Substations and energy distribution hubs

Data centers and large-scale energy infrastructure

By streamlining installation and reducing intermediate devices, the 630A Air Insulated Busway offers both operational efficiency and maintenance simplicity, making it an ideal choice for modern electrical distribution systems.

Precision parameters · 630A core specifications

Key Features & Benefits

Applications & Scenarios

The 630A Air Insulated Busway is suitable for a wide range of power distribution environments:

Industrial Plants: Supports machinery, production lines, and heavy-duty equipment with high current demands.

Commercial Complexes: Efficiently distributes power in high-rise buildings, shopping malls, hotels, and office towers.

Data Centers: Maintains uninterrupted power supply for critical servers and infrastructure.

Substations & Switchrooms: High-reliability connection in medium- and low-voltage distribution networks.

Large Campuses & Factories: Flexible layouts for modular expansions and customized distribution paths.

With its modular design, the busway can be adapted to non-standard routes or extended to meet future capacity requirements, making it more versatile than conventional rigid busbars.

Comparison with Competitors

FAQ

1.What is the 630A Air Insulated Busway used for?

It is used for high-current power distribution in industrial plants, commercial buildings, data centers, and substations.

2.What is the advantage of air insulation over resin or oil insulation?

Air insulation is environmentally friendly, maintenance-free, resistant to aging and moisture, and allows easier inspection.

3.Can the busway be customized for non-standard lengths or configurations?

Yes, Fenghua Electric supports full customization to match your layout and load requirements.

4.What materials are used for conductors?

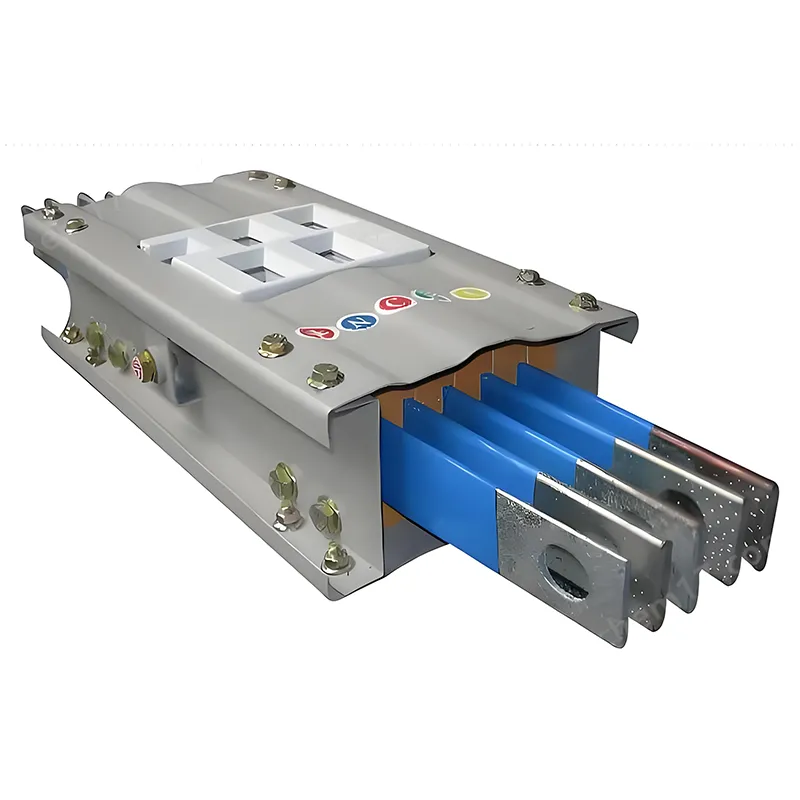

High-purity electrolytic copper (≥99.99%), tinned and protected with PVC heat-shrink sleeves for corrosion resistance.

5.What safety standards does the 630A busway meet?

Certified by 3C, meets IP40 protection, and complies with industry-standard electrical safety guidelines.

6.How is the installation process?

Modular design with plug-in connections allows rapid assembly, reduces labor cost, and supports ceiling, wall, or floor mounting.

7.What is the expected lifespan of this busway?

With proper installation and usage, it can reliably operate for over 20 years, thanks to high-quality materials and robust design.

8.What after-sales support is provided?

Fenghua Electric offers 2-year free warranty, lifetime paid service, and emergency response: 24h within city, 36h within province, 48h nationwide.

Fenghua's Craftsmanship and Strength Safeguard Power Distribution Safety

Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd. has dedicated nearly two decades to the field of electrical transmission, adhering to the core philosophy of "Precision Craftsmanship, Integrity for Success." With complete qualifications and patents, the company boasts a comprehensive production and R&D system and stringent quality control processes. From raw material selection, product design, production and processing to finished product testing, every step is meticulously controlled. Key parameters such as the 630A rated current carrying capacity, insulation performance, and conductivity efficiency are rigorously checked to ensure that every product meets national standards and industry specifications, guaranteeing stable and reliable quality. Simultaneously, the company has a professional technical team and a comprehensive after-sales service system, providing full-process professional services covering product selection, installation guidance, and after-sales maintenance. We offer one-on-one solutions to various problems encountered by customers during procurement and use, ensuring worry-free procurement and peace of mind, living up to every trust and entrustment.

Inquire for Cooperation – Building a High-Quality Power Distribution System

Craftsmanship and precision, suitable for power distribution; professional empowerment, embarking on a new journey. Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd.'s 630A Air Insulated Busway, with its precise current carrying capacity, superior safety performance, convenient installation, and robust quality, is the preferred product in the 630A power distribution field. It can meet the needs of various customers, including bulk purchases and non-standard customization. We sincerely invite new and existing customers to inquire for details and discuss cooperation. We will work with you to build a safe, efficient, and stable power distribution system, contributing to the high-quality development of various industries and ushering in a new future for electrical transmission, with high-quality products, reasonable prices, and professional services.
