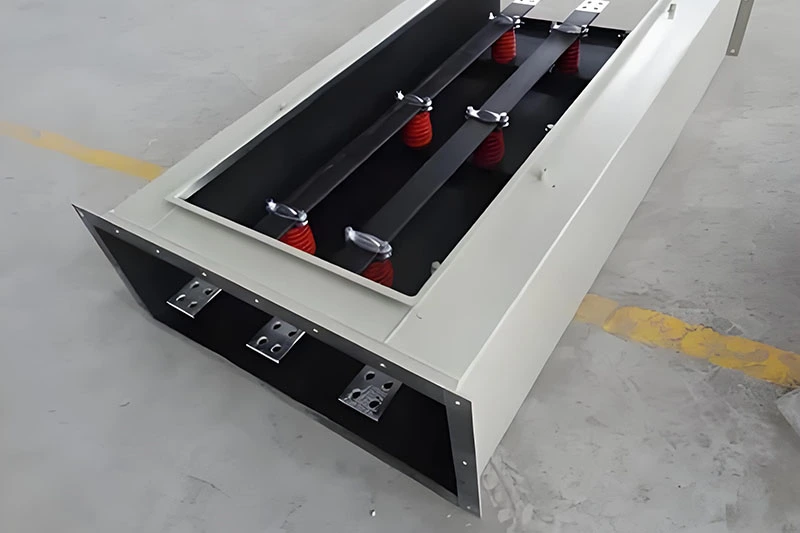

Steel-Enclosed High Voltage Bus Duct

Fenghua Electric Steel-Enclosed High Voltage Bus Duct is a high-performance power transmission system designed for 3.6kV–35kV high-voltage distribution networks. Manufactured by Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd., it integrates multi-phase conductors within a fully enclosed steel housing using advanced insulation encapsulation technology.

Engineered for safety, durability, and long-term stability, this system delivers reliable high-voltage power transmission while minimizing energy loss, electromagnetic interference, and operational risks. It serves as an advanced alternative to traditional high-voltage cables and is widely used in power infrastructure projects requiring stable and efficient energy distribution.

Technical Parameters

How It Works?

The system transmits electrical power through multiple phase conductors (A, B, C, and N) that are arranged inside a common steel enclosure. The enclosure provides:

Electrical insulation barrier

Mechanical protection

Electromagnetic shielding

Thermal dissipation support

This integrated design reduces external interference and ensures consistent high-voltage performance over long-distance power transmission.

Core Structural & Technical Advantages

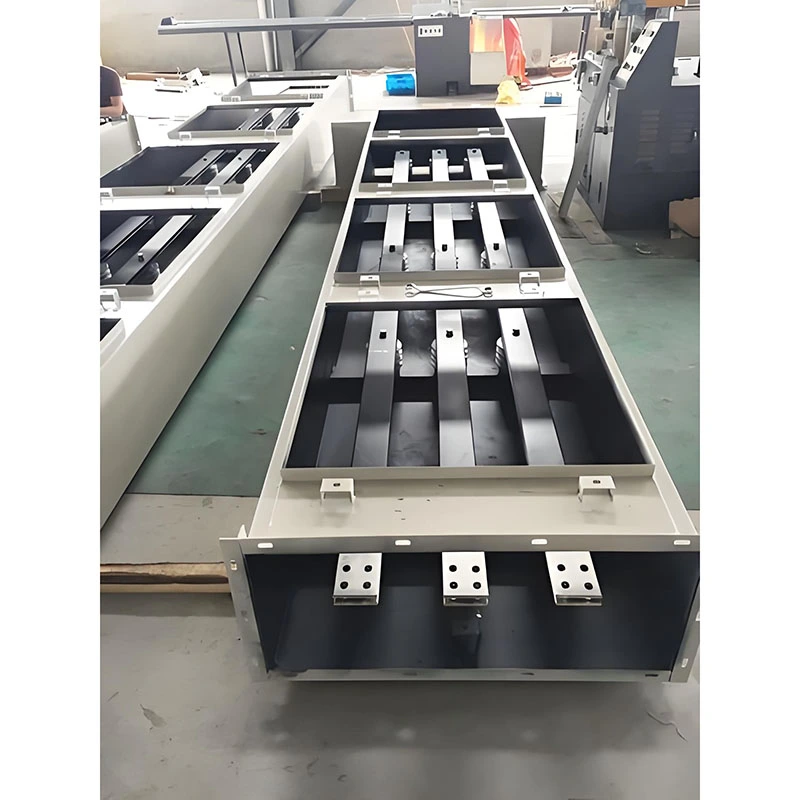

Heavy-Duty Steel Enclosure

The bus duct adopts a cold-rolled steel sheet enclosure with anti-corrosion treatment, offering excellent mechanical strength, vibration resistance, and impact protection. It is suitable for harsh industrial and outdoor environments, ensuring a service life exceeding 30 years under proper operation.

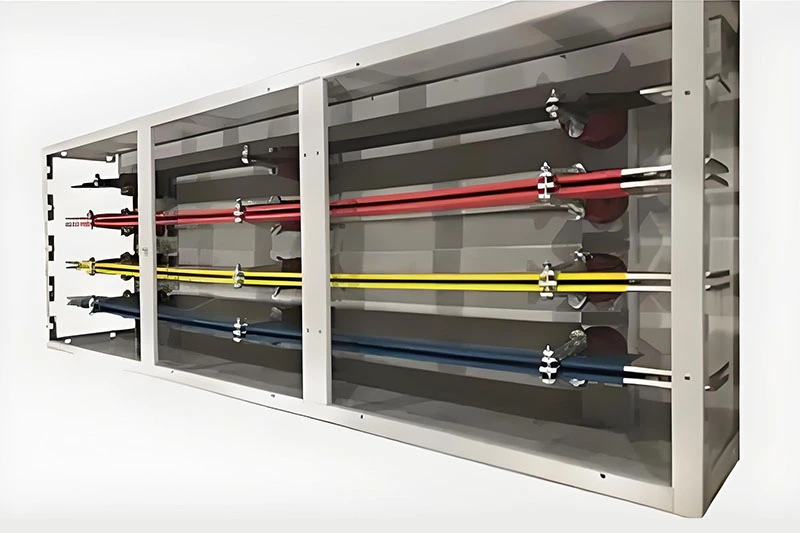

Compact Common-Box Design

The integrated enclosure structure combines A/B/C/N phase conductors within a single sealed system. This compact layout reduces installation space requirements while optimizing phase spacing to improve electrical stability and reduce electromagnetic stress.

High-Voltage Insulation Safety

Using advanced insulation materials with high dielectric strength, the system achieves insulation resistance ≥ 1000MΩ, effectively preventing leakage, flashover, and breakdown risks. It fully complies with high-voltage safety standards for secure long-term operation.

Efficient Thermal Management

The steel enclosure provides natural thermal conductivity combined with optimized airflow design. Heat generated during operation is efficiently dissipated, maintaining temperature stability and preventing overheating-related failures.

Strong EMI Shielding Performance

The fully enclosed steel structure significantly reduces electromagnetic interference, ensuring stable operation of surrounding electrical equipment. It is suitable for complex industrial power environments requiring high reliability.

Application Fields

The Steel-Enclosed High Voltage Bus Duct is designed for demanding high-voltage environments and is widely applied in:

Power Generation & Distribution: substations, power plants, and distribution centers

Heavy Industry: metallurgy, chemical plants, cement factories, shipyards

Infrastructure Projects: rail transit systems, airports, ports, large commercial complexes

Special Environments: underground utility corridors, outdoor high-voltage transmission systems

Its robust structure and stable electrical performance make it a preferred solution for replacing traditional high-voltage cable systems in large-scale projects.

Why Choose Fenghua Electric?

Engineering Expertise

With years of experience in high-voltage power equipment manufacturing, Fenghua Electric delivers engineered solutions based on real-world industrial applications and strict electrical design standards.

Strict Quality Control System

Every production stage—from raw material selection to final assembly—is strictly controlled. Third-party testing reports are available to ensure compliance with international high-voltage safety standards.

Direct Manufacturer Supply

As a source manufacturer, we provide factory-direct pricing, stable delivery cycles, and cost-efficient procurement solutions, eliminating unnecessary intermediary costs.

Custom Engineering Solutions

We offer fully customized bus duct systems based on voltage level, installation environment, load requirements, insulation grade, and protection level to meet project-specific needs.

Professional After-Sales Support

Our technical team provides installation guidance, commissioning support, troubleshooting, and long-term maintenance services with fast response capability, ensuring system stability throughout its lifecycle.

Procurement & Cooperation

Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd. specializes in the R&D and production of the Steel-Enclosed High Voltage Bus Duct, delivering safe, efficient, and reliable high-voltage power distribution solutions for global industrial clients.

We welcome global partners to request quotations, technical consultation, factory visits, and project cooperation. With strong manufacturing capability, strict quality assurance, and professional service support, Fenghua Electric is committed to building long-term, mutually beneficial partnerships in the global power industry.
