Sandwich Busway for Power Distribution

A Sandwich Busway is, in essence, a busbar system that replaces traditional cables with a compact, layered conductor structure to facilitate centralized power distribution.

The term "Sandwich" refers to its constituent layers:

Conductors (copper or aluminum)

Insulation (epoxy resin, polyester film, etc.)

Enclosure (aluminum alloy or steel)

These three elements are stacked layer upon layer—much like a sandwich—hence the name.

What Is a Sandwich Busway for Power Distribution?

A Sandwich Busway for Power Distribution is a compact, high-efficiency electrical distribution system designed to transmit and distribute low-voltage to medium-voltage power in industrial, commercial, and infrastructure projects.

It is called “sandwich type” because the conductor phases are arranged in a tightly stacked structure, insulated and compressed between high-strength epoxy resin or insulating materials, forming a low-impedance, high-safety power transmission system.

Compared with traditional cable systems, sandwich busways provide higher current capacity, better heat dissipation, and significantly reduced installation space.

Structure and Working Principle

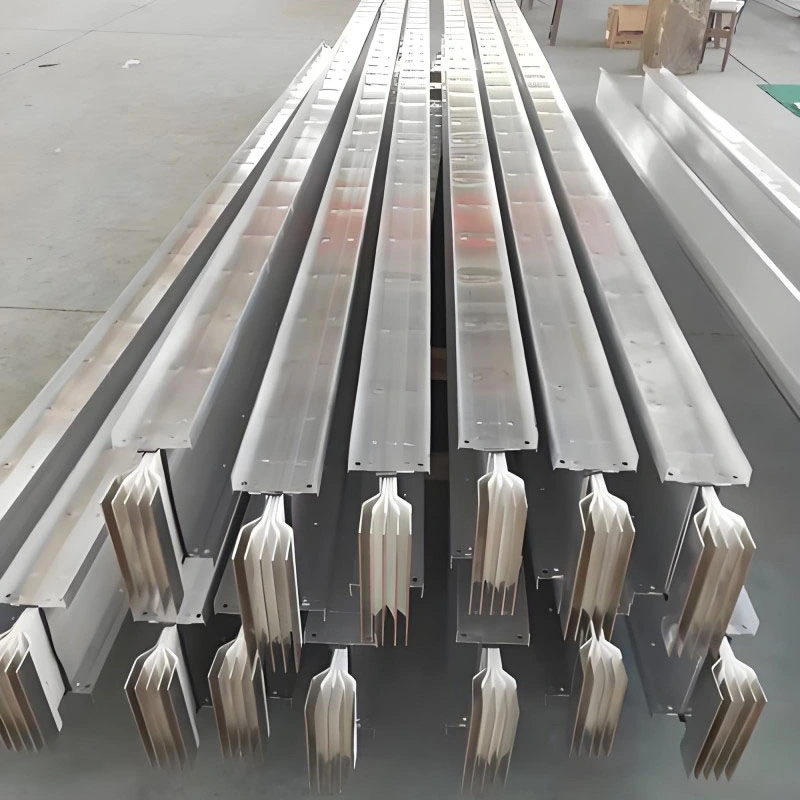

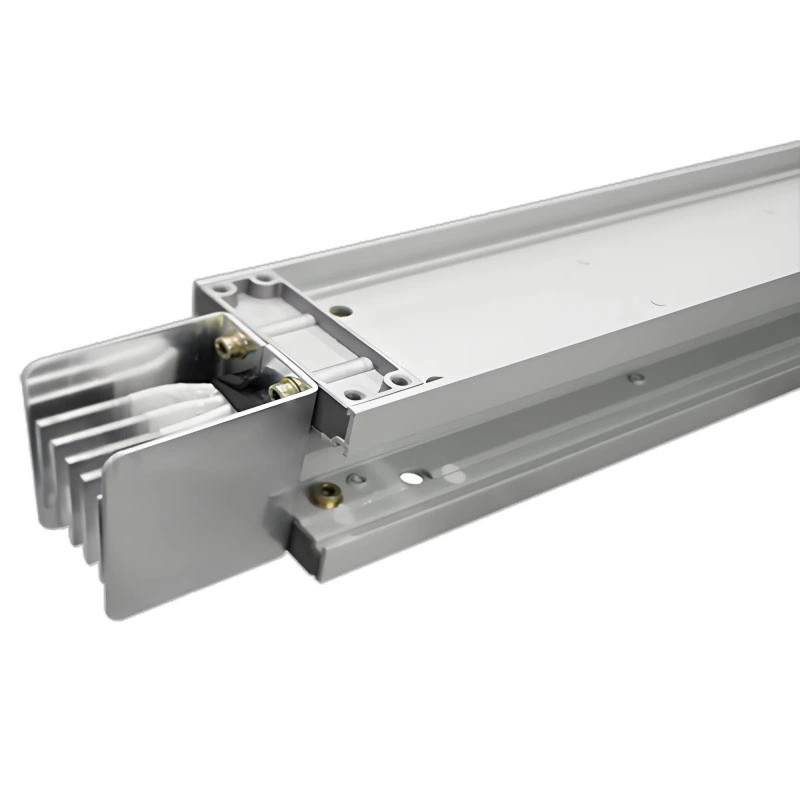

A sandwich busway typically consists of:

Copper or aluminum conductors (high conductivity, low loss)

Epoxy resin insulation layers

Aluminum or steel enclosure

Joint connectors for modular installation

Grounding system for safety protection

Working principle:

Electric current flows through tightly arranged conductors with minimal spacing, reducing reactance and improving electrical efficiency. The “sandwich” structure ensures uniform current distribution and enhanced thermal stability.

Key Features

1. High Current Carrying Capacity

Designed for heavy-duty power distribution, supporting hundreds to thousands of amperes depending on configuration.

2. Compact Structure

The sandwich design reduces cable clutter and saves up to 30–70% installation space compared to conventional cable trays.

3. Low Energy Loss

Optimized conductor arrangement reduces impedance and heat loss, improving overall system efficiency.

4. Excellent Heat Dissipation

The enclosure and epoxy insulation help maintain stable operating temperatures under continuous load.

5. High Safety Performance

Flame-retardant insulation materials

Fully enclosed structure prevents dust and moisture ingress

High short-circuit withstand capability

6. Modular Installation

Prefabricated sections allow fast installation, expansion, and maintenance without complex wiring.

Technical Advantages

Application Areas

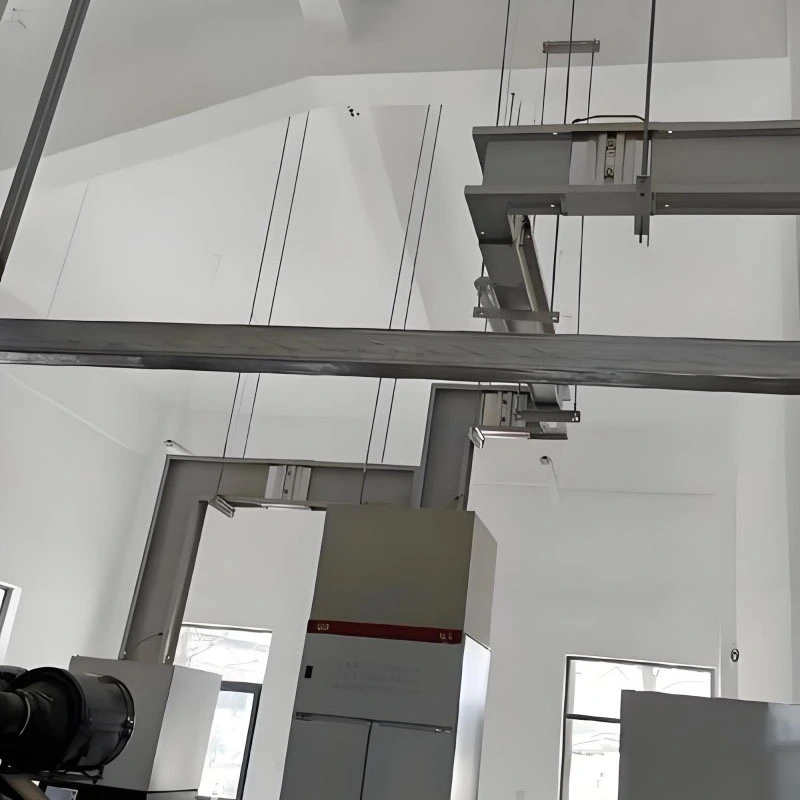

The Sandwich Busway for Power Distribution is widely used in modern electrical infrastructure, including:

Industrial factories and manufacturing plants

Data centers and server rooms

Commercial buildings and shopping malls

High-rise residential complexes

Hospitals and public facilities

Transportation systems (airports, railways, subways)

Renewable energy power stations

Why Choose Sandwich Busway Over Conventional Systems?

As modern buildings demand higher energy efficiency and compact electrical layouts, sandwich busways have become a preferred solution due to:

Reduced installation cost in long-term projects

Higher reliability in continuous operation environments

Lower maintenance downtime

Better scalability for future expansion

For contractors, EPC companies, and electrical system integrators, it is a cost-effective and future-ready power distribution solution.

Installation and Maintenance Advantages

Installation Benefits:

Plug-in modular design

Reduced labor requirement

Faster project completion time

Maintenance Benefits:

Sectional replacement without system shutdown

Clear fault localization

Long service life with minimal degradation

A Sandwich Busway for Power Distribution is a modern, high-performance alternative to traditional cable distribution systems. With its compact structure, high efficiency, and superior safety performance, it is widely adopted in industrial and commercial electrical engineering projects worldwide.

As global demand for smart infrastructure continues to grow, sandwich busway systems are becoming an essential component of efficient, safe, and scalable power distribution networks.
