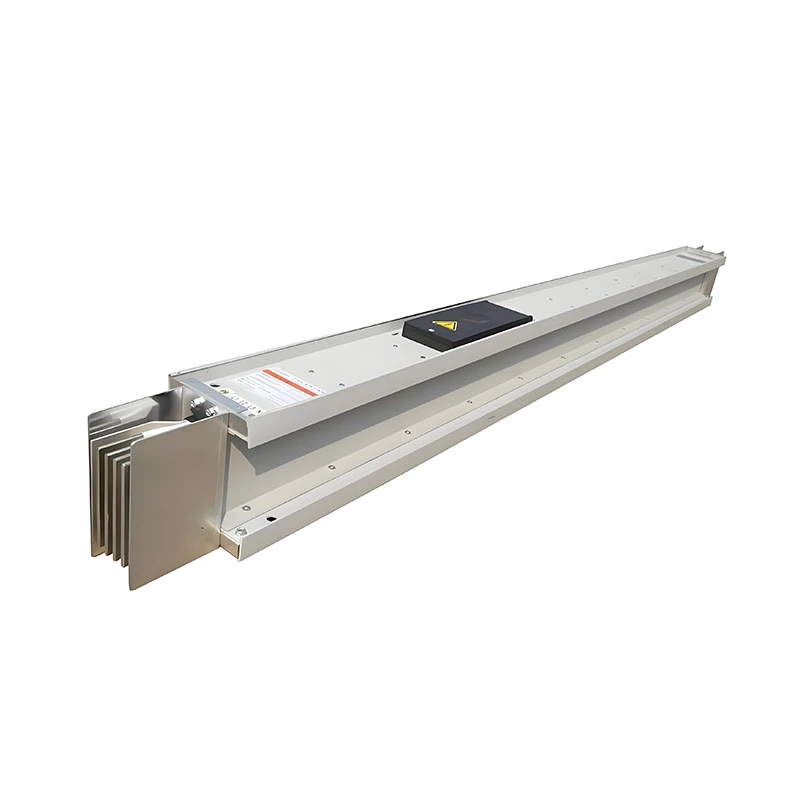

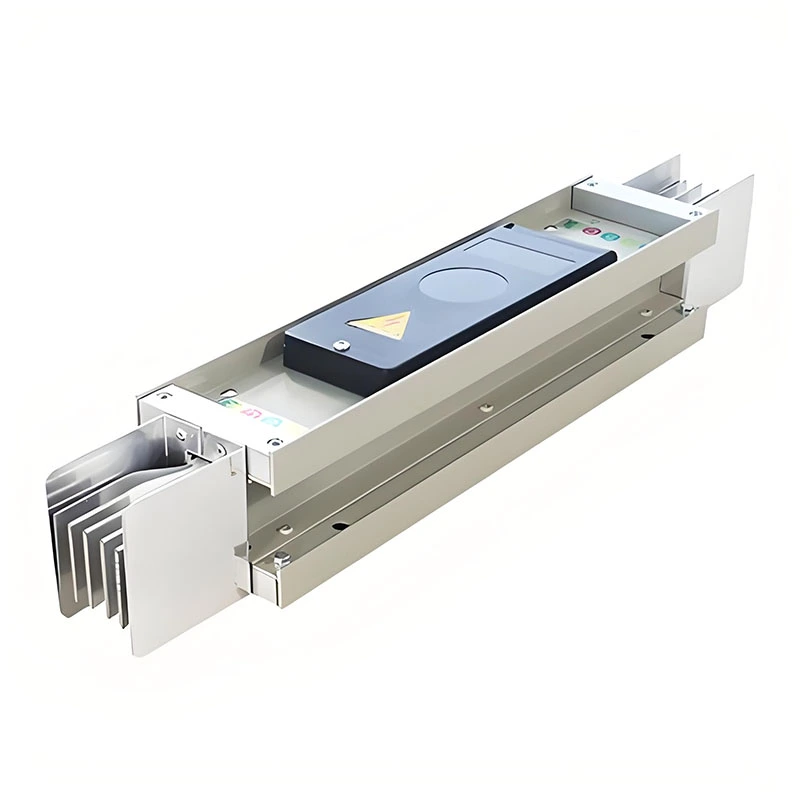

Plug-in Type Sandwich Busway

Fenghua Electric Plug-in Type Sandwich Busway is a high-efficiency power distribution solution designed for industrial, commercial, and building applications. Featuring high-purity copper conductors in a compact “sandwich” stacked structure, it delivers low-loss, high-current transmission. Its flexible plug-in design enables quick installation, modular expansion, and reliable operation across diverse environments. Available for customization, it is ideal for clients seeking a dependable low-voltage busway solution. Contact Fenghua Electric today for procurement!

Company Introduction

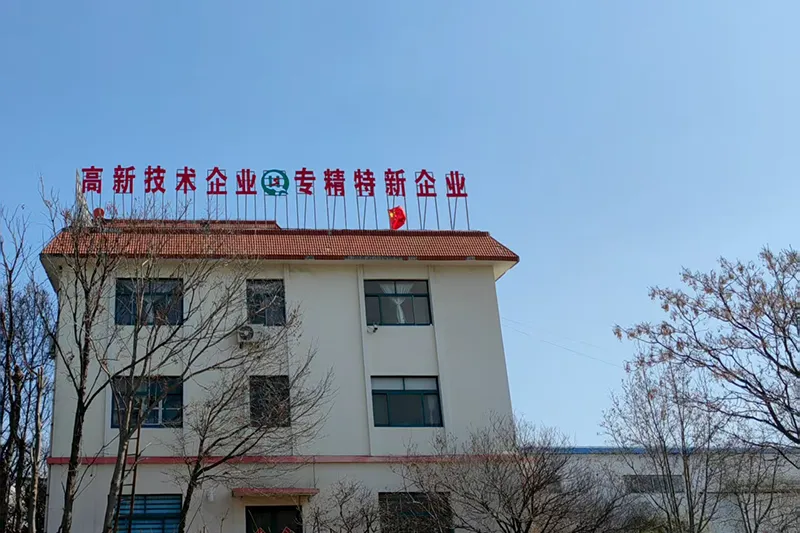

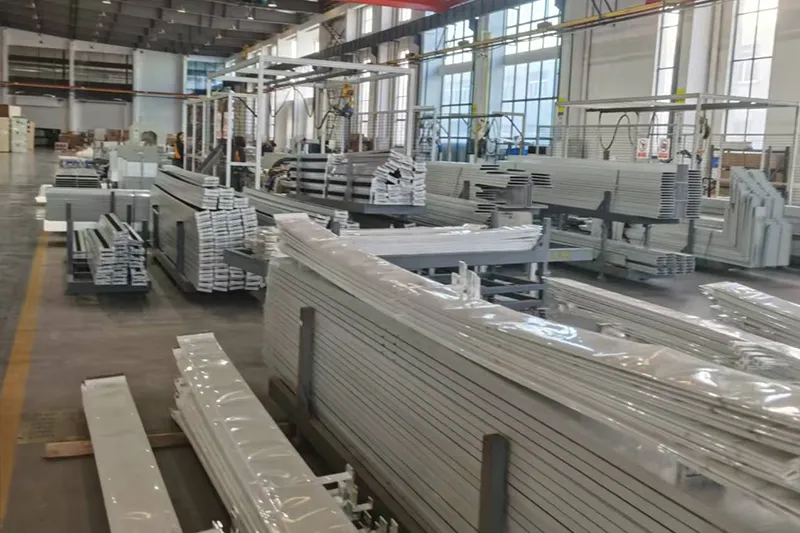

Qingdao Fenghua Electric Appliance Manufacturing Co., Ltd., headquartered in Huangdao District, Qingdao, China, specializes in the design and production of cable trays, busways, and switchgear. Established in 2005, the company holds 19 patents and has extensive experience in low-voltage power distribution systems. With advanced automated production lines, strong R&D capabilities, and a focus on quality and reliability, Fenghua Electric is a trusted manufacturer, supplier, and factory for power distribution solutions.

What is a Plug-in Type Sandwich Busway?

Fenghua Electric Plug-in Type Sandwich Busway (Dense Type) is designed to solve common low-voltage distribution challenges: high energy loss, difficult installation, and limited space. The busway features:

High-purity T2 copper conductors for excellent conductivity, reducing power loss by over 30% compared to aluminum.

Sandwich dense-stacked structure with copper-insulator-copper layering, ensuring compactness, superior insulation, and safe operation.

Plug-in modular design for flexible installation, easy maintenance, and rapid expansion without major system changes.

Comprehensive protection (IP54 standard, optional IP65/IP66), corrosion resistance, and compatibility with diverse indoor and outdoor environments.

Rated for ≤1000V low-voltage systems, with currents from 630A to 2500A, this busway supports industrial plants, commercial buildings, data centers, hospitals, and high-reliability public infrastructure.

Core Features & Advantages

1.Premium Copper Conductors

Material: T2 copper, ≥99.9% purity, tin-plated for oxidation resistance

Conductivity: 30% higher than aluminum, ensuring energy-efficient transmission

Flexible cross-section: 150×10mm / 160×10mm (for 1000A), meeting performance and cost requirements

2.Sandwich Dense Stack Design

Copper + Insulator + Copper configuration eliminates air gaps

Insulation: BMC composite (or DuPont polyester film), rated B-class (130°C), flame-retardant

Compact structure reduces space by ~50% versus traditional cable trays

Shell: 6063-T5 aluminum alloy or cold-rolled steel, with cooling fins; temperature rise ≤60K

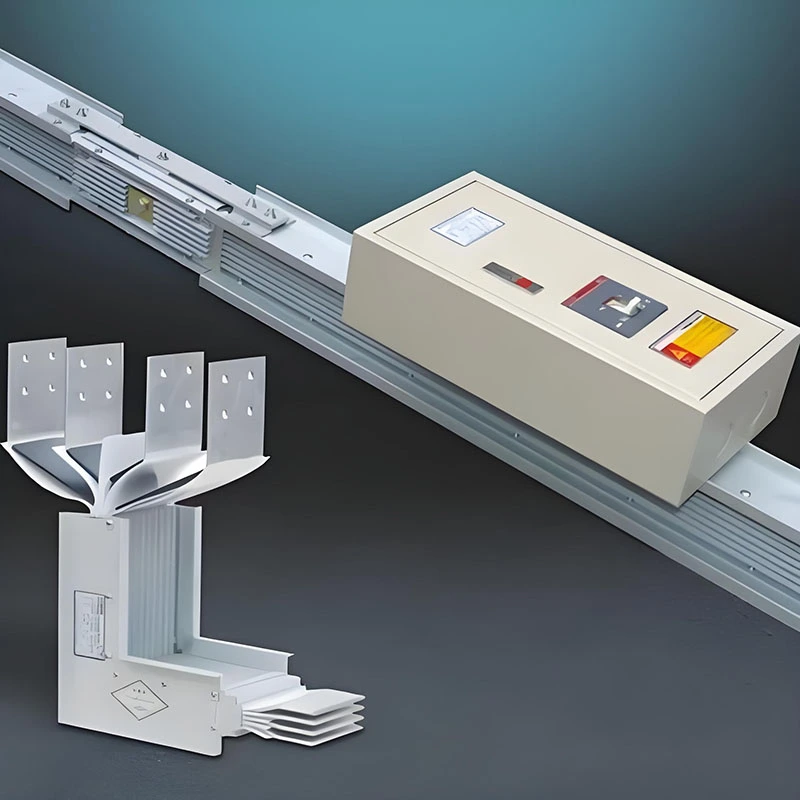

3.Plug-in Modular System

Supports uninterrupted branching with dedicated plug-in boxes

Modular connection allows fast expansion and replacement

Bolt or spring finger connection, with anti-phase misconnection feature

4.Robust Protection & Versatility

IP54 standard, customizable up to IP66 for dust, moisture, and corrosion protection

Grounding continuity ensures safe operation in demanding environments

Suitable for indoor, outdoor, industrial, and harsh environments

Technical Parameters (Based on the 1000A Model)

Typical Applications

High-rise building vertical busways and large current branches

Medium to large industrial plants for power and lighting distribution

Data centers and server rooms

Hospitals, shopping malls, and public buildings

Rail transit, airports, and critical infrastructure requiring high reliability

FAQ

1.What is a Plug-in Type Sandwich Busway?

A compact, modular low-voltage busway with stacked copper-insulator-copper design for efficient power distribution.

2.What voltage and current ranges does it support?

Designed for ≤1000V low-voltage systems, with rated current from 630A to 2500A.

3.Can it be customized for specific projects?

Yes, Fenghua Electric offers modular design and adjustable conductor cross-sections to meet project requirements.

4.Is it suitable for outdoor or corrosive environments?

Yes, IP54 standard is default, with options up to IP65/IP66 for harsh conditions.

5.How easy is installation and maintenance?

Plug-in modular design allows rapid installation, safe branching, and easy expansion without system shutdown.

6.What materials ensure safety and efficiency?

High-purity T2 copper conductors, B-class insulation, flame-retardant housing, and anti-corrosion treatment ensure long-term safety and efficiency.

7.What industries commonly use it?

Construction, industrial plants, data centers, hospitals, commercial buildings, and public infrastructure.

8.What warranty and service support is available?

Standard warranty and Fenghua Electric’s technical support, including on-site service and consultation.

Why Choose Fenghua Electric?

As a China-based manufacturer, supplier, and factory, Fenghua Electric provides plug-in type sandwich busways with reliable quality, flexible customization, and nationwide technical support. Advanced production facilities and decades of R&D ensure products meet international and national standards. Procurement through Fenghua Electric guarantees cost-effective, durable, and energy-efficient power distribution solutions.
